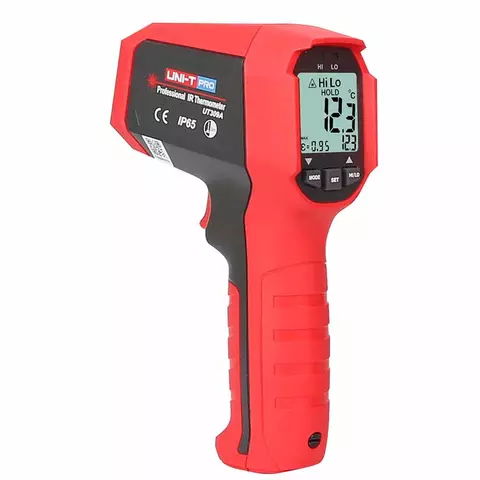

Infrared Thermometer UNI-T UT309A

Name: Infrared Thermometer UNI-T UT309A
Brand: UNI-T
SKU: 883740
Price: 137.50 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

id: 883740

Overview

Description

Specifications

Delivery

Payment

Warranty

USD 137.50

Overview

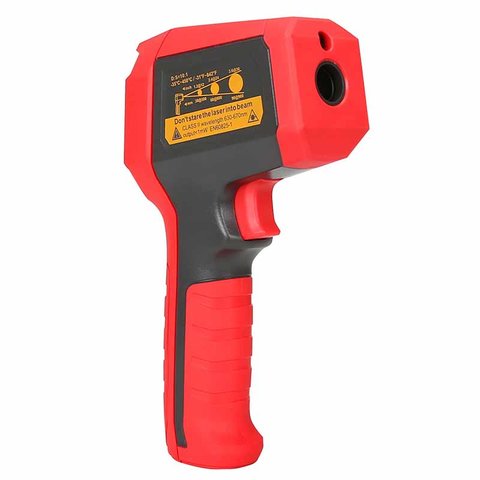

Infrared Thermometer UNI-T UT309A Preview 1

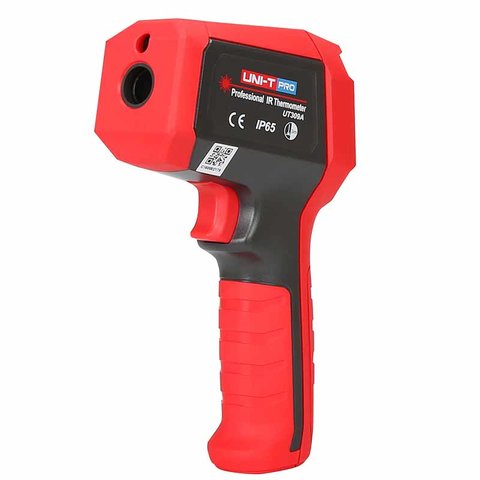

Infrared Thermometer UNI-T UT309A Preview 2

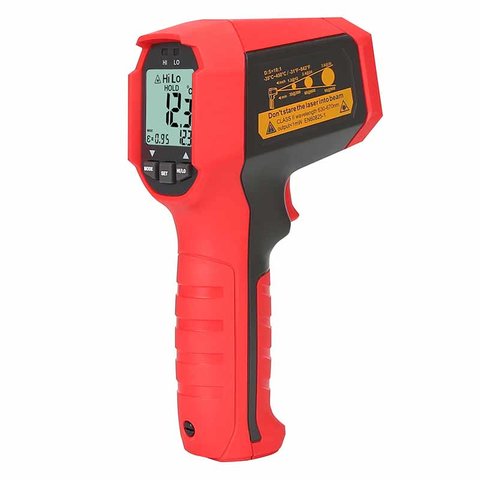

Infrared Thermometer UNI-T UT309A Preview 3

Infrared Thermometer UNI-T UT309A Preview 4

5 (1)

0.6 kg Warranty: 24 months

An infrared pyrometer for surface temperature measurements within the range from -35 ºC to 450 ºC. Response time: 250 ms. D:S ratio: 10:1. Read more

USD 137.50

Buy wholesale and save

USD 137.50

Impossible to estimate the shipping cost

Description

UNI-T UT309A is an infrared thermometer for non-contact surfaces and objects temperature measuring within the range from -35 ºC to 450 ºC. It is designed to meet some of the highest protection ratings in UNI-T's product line, IP65. UNI-T UT309A is 3 m drop proof.

Features

IP65 dust and water protection.
Strong and durable case: drop test from a height of 3 m.
Large backlit LCD display.
Scanning modes: MAX / MIN / AVG / DIF.
High/low temperature alarm with LED indication.
Lock measurement.
Data hold function.
Auto power off.

Technical Specifications

Temperature range	-35 °C ~ 450 °C
Temperature range	-31 °F ~ 842 °F
Accuracy	≥0 °C: ±1.8 °C or ±1.8%
	<0 °C: ±(1.8 °C + 0.1 °C/°C)
	≥32 °F: ±3.6 °F or ±1.8%
	<32 °F: ±(3.6 °F + 0.1 °F/°F)
Resolution	0.1 °C / 0.1 °F
D:S ratio	10:01
Response time	250 ms (95%)
Emissivity	22:48
Number of lasers	Single laser
Laser type	Class 2
Laser power	<1 mW
Laser wavelength	630-670 nm
Spectral response	8 μm ~ 14 μm
Power	9 V battery, 6F22
Display	LCD 32 × 29 mm
Dimensions	189 × 118 × 55 mm
Weight	292 g

User Manual

Download UNI-T UT309A user manual.

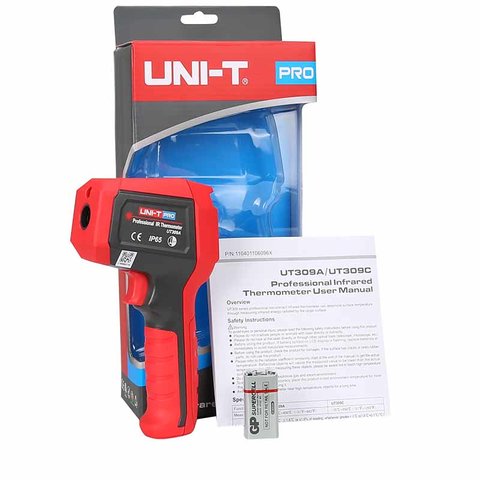

Package Contents

Infrared Thermometer UNI-T UT309A — 1 pc.
PC software CD — 1 pc.
Carrying bag — 1 pc.
User manual — 1 pc.

Note! Batteries are not included in the package.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
