Overview
1.4 kg Warranty: 24 months
An infrared pyrometer for surface temperature measurements within the range from -35°C to 850°C. Response time: 250 ms. D:S ratio: 20:1. Read more
Price coming soon
Description

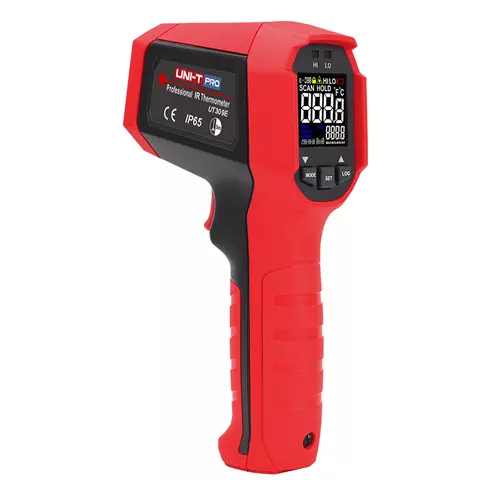

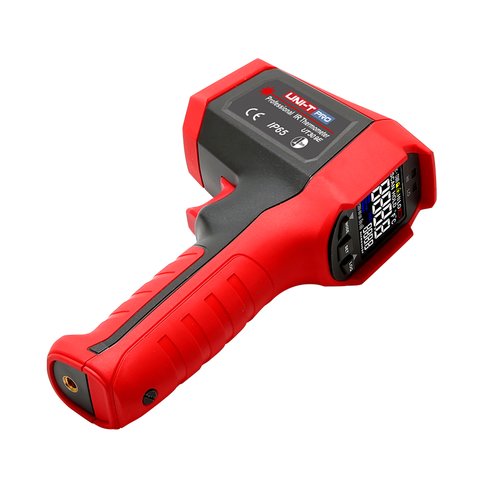

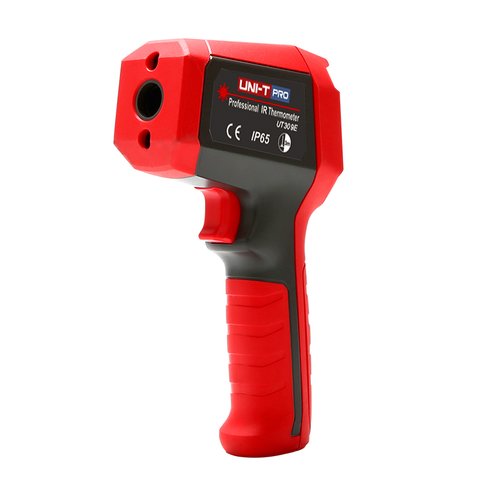

UNI-T UT309E is an infrared thermometer for non-contact surfaces and objects temperature measuring within the range from -35ºC to 850ºC. It is designed to meet some of the highest protection ratings in UNI-T's product line, IP65. UNI-T UT309E is 3 m drop proof.
With a rapid response rate of 250 ms, high measurement accuracy, and multiple scanning modes, UNI-T UT309E proves to be a necessary tool for engineers and technicians working in a various fields.
Features
- IP65 dust and water protection.
- Strong and durable case: 3 m drop test.
- High/low temperature alarm with LED indication.
- Dual-wavelength rotatable laser indication.
- Scheduled measurement (maximum interval is 96 hours).
- Auto power off.
- Low battery indication.
- Data hold.
- °C/°F selection.
- Scanning modes: MAX / MIN / AVG / DIF.
- Lock measurement.
Technical Specifications
| Temperature range | -35°C~850°C -31°F~ 1562°F |
| Accuracy | ≥0°C: ±1.8°C or ±1.8% <0°C: ±(1.8°C+0.1°C/°C) ≥32°F: ±3.6°F or ±1.8% <32°F: ±(3.6°F+0.1°F/°F) |
| D:S ratio | 20:01 |
| Response time | <250 ms |
| Emissivity | 0.95 (default); 0.1~1.0 (adjustable) |
| Spectral response | 8 μm ~ 14 μm |
| Laser power | <1 mW |
| Display | LCD color EBTN, 32 mm × 32 mm |
| Operating temperature | 0°C~50°C (32°F ~122°F) |
| Storage temperature | -20°C~60°C (-4°F~140°F) |
| Operating humidity | <90% RH (non-condensing) |
| Drop test | 3 m |
| IP rating | IP65 |
| Data storage with date and time | 99 |
| Power | 9V battery |
| Dimensions | 189 mm × 118 mm × 55 mm |
| Weight | 292 g |
User Manual
Download UNI-T UT309E user manual.
Package Contents
- Infrared Thermometer UNI-T UT309E — 1 pc.
- Carrying Bag — 1 pc.
- Battery — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
