Insulation Resistance Tester UNI-T UT513A
id: 841678
Insulation Resistance Tester UNI-T UT513A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 286.00
Notify
when in stock
when in stock
Overview
![Insulation Resistance Tester UNI T UT513A](https://i24.psgsm.net/gsm.com/p/841678/480/insulation-resistance-tester-uni-t-ut513a.jpg)
4.5 kg 220 V Warranty: 24 months
Insulation resistance tester which is designed to measure the insulation resistance from 1 MΩ to 1000 GΩ in the ranges of 500 V, 1000 V, 2500 V and 5000 V. Read more
Buy wholesale and save
Inform of price reduction
Description

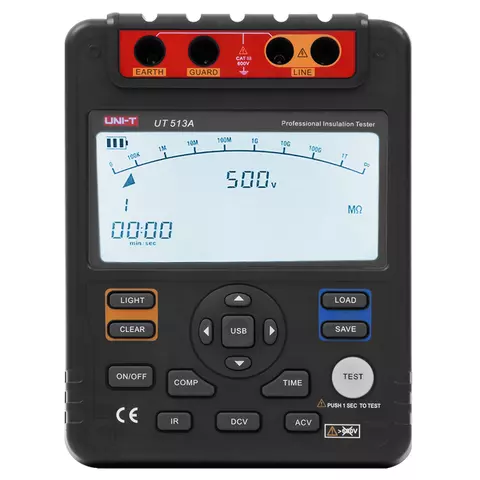

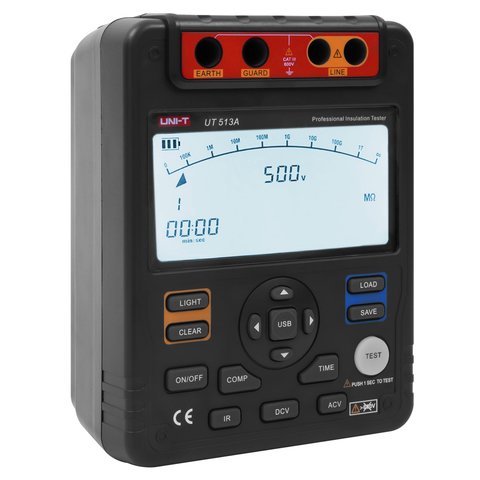

UNI-T UT513A is an insulation resistance tester which is designed to measure the insulation resistance from 1 MΩ to 1000 GΩ in the ranges of 500 V, 1000 V, 2500 V and 5000 V.
Features
- Auto ranging.
- Auto power-off.
- Test data logging.
- Data comparison.
- Polarization index.
- Dielectric absorption.
- LCD backlit display.
- Analogue bar graph.
- Over range warning.
- High voltage indicator.
- Sleep mode.
- Low battery indication.
Technical Specifications
Measurements
Voltage Range | Resistance | Accuracy | |
---|---|---|---|
Insulation resistance measurement | 500 V | 1 MΩ ~ 20 GΩ | ±3%+5 |
1000 V | 2 MΩ ~ 40 GΩ | ||
2500 V | 5 MΩ ~ 100 GΩ | ||
5000 V | 10 MΩ ~ 1000 GΩ |
General
Display | LCD with backlight, 123 × 58 mm | ||
Power | 1.5 V alkaline battery (8 pcs.) | ||
Dimensions (H × W × D) | 202 × 155 × 94 mm | ||
Weight | 2.0 kg |
Package Contents
- Insulation resistance tester UNI-T UT513A – 1 pc.

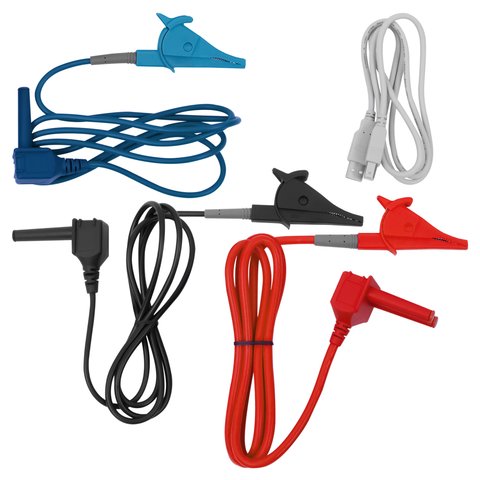

- Test leads with alligator clip – 2 pcs.
- Two plugs test lead – 1 pc.
- Batteries – 8 pcs.
- USB cable – 1 pc.
- Power adaptor – 1 pc.
- Software CD - 1 pc.
- User manual – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
