Laboratory Power Supply Sunshine P-3005D, (single-channel, transformer, up to 30 V, up to 5 A, LED indicators)
id: 915301
Laboratory Power Supply Sunshine P-3005D, (single-channel, transformer, up to 30 V, up to 5 A, LED indicators)
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
4 kg Warranty: 6 months
A single-channel power supply provides DC voltage power supply in a range of 0 to 30 V, and current in a range of 0 to 5 A. Read more
Price coming soon
Description

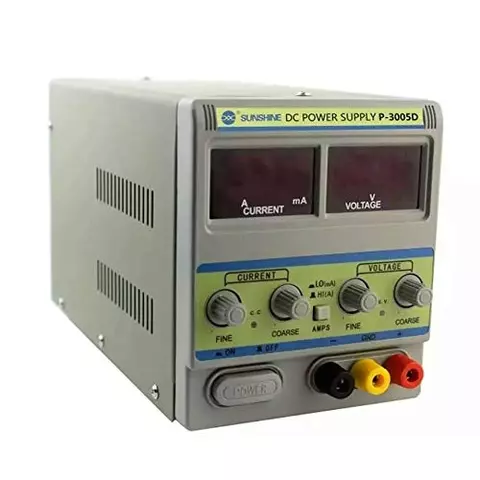

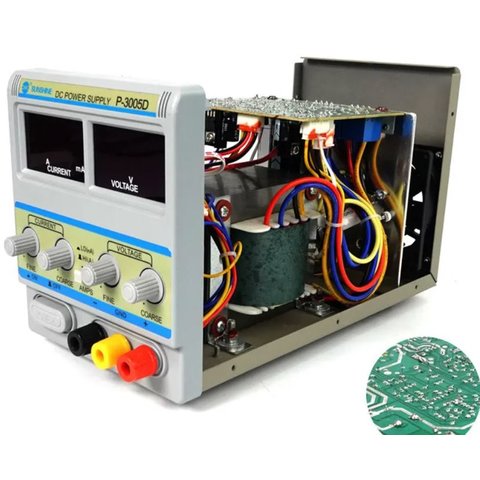

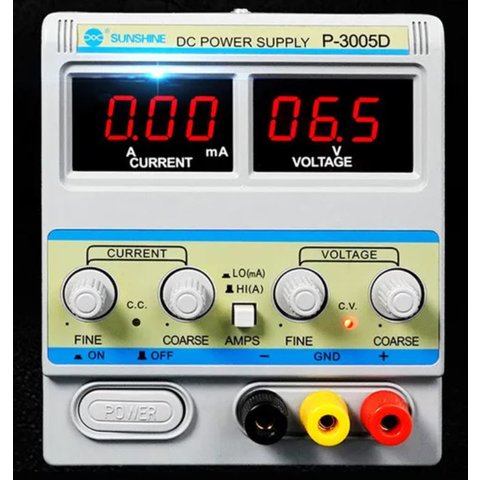

Sunshine P-3005D is a single-channel transformer power supply with a data display on the screen from LED indicators. The Sunshine P-3005D provides power for electronic devices and circuits with a constant voltage in the range of 0 to 30 V and current in the range of 0 to 5 A.
Features
- High quality and reliability.
- Data display: LED indicators.
- Protection against short circuit, overload, reverse polarity, etc.
- Possibility of adjusting the required current value.
Technical characteristics
| Output voltage | 0-30 V |
| Output current | 0-5 A |
| Output power | 150 W |
| Load regulation | CV: ≤0.01%+2 mV, CC: ≤0.1%+3 mA |
| Ripple and noise | ≤1 mV rms. |
| Output regulation resolution | CV: 10 mV (typical), CC: 1 mA (typical) |
| Display | LED |
| Power | input voltage: 110 V/220 V ± 10% AC; frequency: 50Hz/60Hz |
Assembly
- DC Power Supply Sunshine P-3005D — 1 pc.
- Output Cables — 1 set
Video
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
