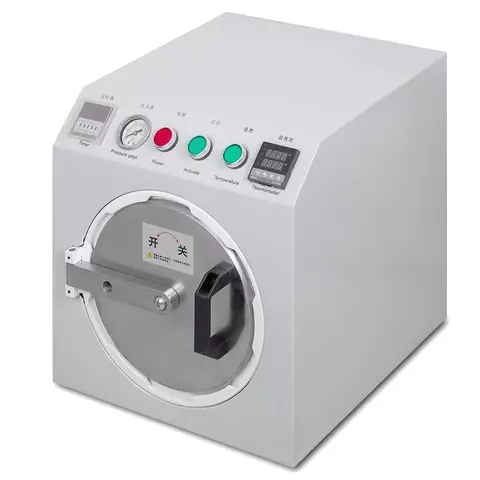

LCD Module Gluing Machine AS 2030, (for LCDs up to 13", autoclave )
id: 858529
LCD Module Gluing Machine AS 2030, (for LCDs up to 13", autoclave )
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 228.05
Overview
42 kg 220 V
Availability in stock:
CN
Warranty: 6 months This device is used for LCD module gluing. Read more
USD 228.05
Buy wholesale and save
Note! This item is shipped within 14 working days.
Description
Technical Specifications
| Voltage | 110/220 V |
| Temperature range | 0-400 °C |
| Diameter | 200 mm |
| Depth | 300 mm |

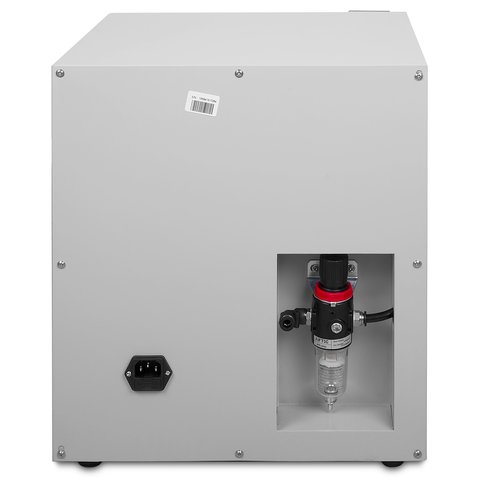

| Hose diameter for compressor connection | 8 mm |
| Maximum pressure | 9 Bar |
| Device size | 380x380x450 mm |
Note! The compressor is not included in the package.
Operating Principles
- Connect the compressor to the device.

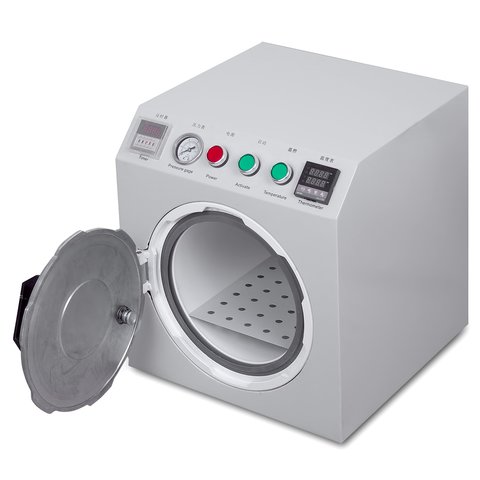

- Open the chamber door, put the display module there, close the door.
- Press the red Power button to turn the device on.
- Set the temperature of 40-60 °C. The temperature settings depends on the model of the display module.
- Turn the compressor on and set the pressure of 7 Bar.
- Set the time (approximately 15-30 min) depending on the amount of air bubbles.
- Press the green Start button to launch the gluing process.
- Warning! Do not open the device when it is working under pressure!
- When the gluing process is finished, the device automatically will release pressure. If it didn't happen, then turn the black rotary switch to the right to the Exh mark.
- The display and the glass are bonded. Now the LCD module can be installed in a cell phone, smartphone or tablet.
Package Contents
- Device — 1 pc.
- Power cable — 1 pc.
- Filter for compressor — 1 pc.
- Metal stand — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
