Metal, Wood, Current Detector Scanner FNIRSI WD-02
id: 916298
Metal, Wood, Current Detector Scanner FNIRSI WD-02
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
![Metal, Wood, Current Detector Scanner FNIRSI WD 02](https://i46.psgsm.net/gsm.com/p/916298/480/metal-wood-current-detector-scanner-fnirsi-wd-02.jpg)
0.35 kg Warranty: 6 months
Max. detection depth: metals 120 mm, non-ferrous metals (copper) 100 mm, AC wire 50 mm, single-strand copper wire 40 mm, wooden 38 mm Read more
Inform of price reduction
Description

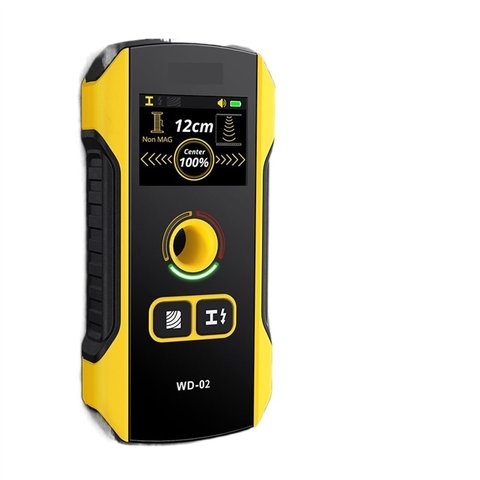

FNIRSI WD-02is a non-contact voltage, metal, and wood indicator equipped with an upgraded high-definition TFT display and 3-step sensitivity adjustment for maximum measurement accuracy. The detector can be used to detect steel rods, rebar, metal beams, metal pipes, profiles, wood, live wires in walls, ceilings, and floors.
The device's design, with a hole for precise positioning, ensures accurate findings and further drilling. Widely used in interior decoration, home installation, and other industries to enable various constructions to be carried out safely.
Features
- TFT color contrast display
- Audible alarm and visual LED signaling when metal, tension, or wood is detected
- High-performance anti-interference module

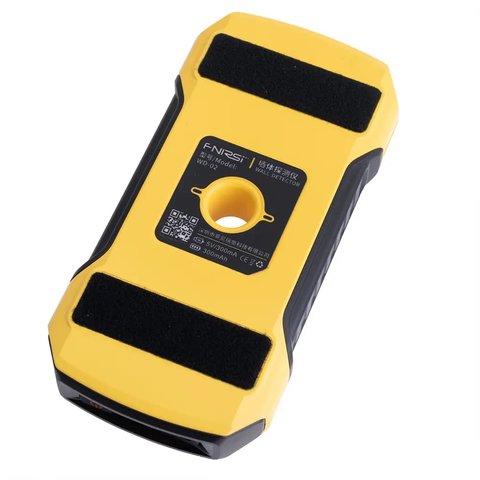

- Center positioning hole design, allowing you to mark the drilling position directly after detection for precise drilling
- Provides safety when drilling walls by clearly indicating the location of objects within the walls and their depth
- Three operating modes:
- Foreign object detection mode: typically applies to wood, detecting up to 38 mm deep
- Metal scanning mode: detects metal (iron, copper, and aluminum) up to 120 mm deep
- AC wire scanning mode: supports searching for AC live wires up to 40 mm deep
Technical Specifications
Ferrous Metal Detection | up to 120 mm deep |
Non-ferrous Metal Detection | up to 100 mm deep |
AC Voltage Wire Detection | up to 50 mm deep |
Solid Copper Wire Detection | up to 40 mm deep |
Wood Detection | up to 38 mm |
Display | color TFT |
Indication | audible alarm and LED |
Automatic Power off | after 5 minutes of inactivity |
Power | built-in 300 mAh lithium battery |

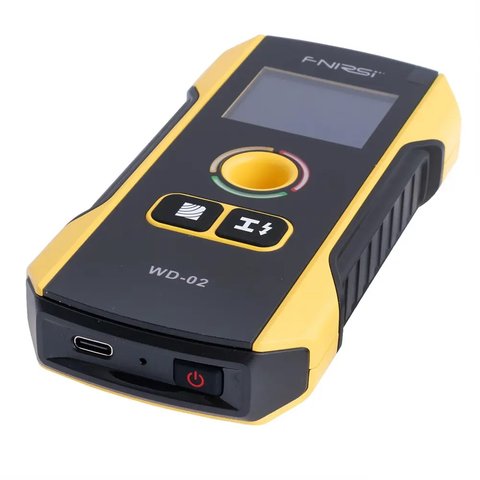

Charging Interface | Type-C |
Metrial | metal + plastic |
Dimensions | 138 mm × 68 mm × 22 mm |
Weight | 122 g |
Package Contents
- Metal, Wood, Current Detector Scanner FNIRSI WD-02 — 1 pc.
- Storage Bag — 1 pc.
- Charging Cable — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
