Overview
0.3 kg Warranty: 24 months
True RMS mini clamp meter that measures AC/DC current, AC/DC voltage, resistance, capacitance. IT features a 6000-digit display, NCV, VFC and diode testing functions Read more
Inform of price reduction
Description

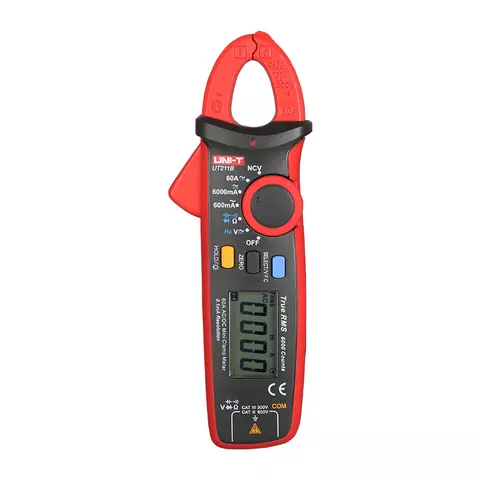

UNI-T UT211B is a True RMS miniature clamp meter designed to measure DC/AC current, DC/AC voltage, resistance, and capacitance. The instrument features a 6000-count display and NCV (non-contact voltage detection) function. The clamp meter is perfect for anyone requiring high precision and accurate results when working with electronics, such as troubleshooting solar power systems, electrical vehicles, etc. It is ergonomically designed and lightweight, making it a convenient tool for working in tight spaces.
Features
- True RMS AC voltage and current measurement.
- Measurement functions:
- AC/DC voltage;
- AC/DC current;
- resistance;
- capacitance;
- diode testing;
- VFC;
- NCV.
- Comfortable to use and lightweight.
- Automatic selection of the required measurement range.
- ZERO mode.
- Measurement frequency of 2-3 times per second.
- Automatic power off.
- Low battery indication (≤2.5V).
- Input protection.
- LCD backlight and data hold function.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 60 A (0.1 mA resolution) | ±(1.5%+10) |
| DC Current | 60 A | ±(2%+3) |
| AC Voltage | 600 V | ±(0.8%+3) |
| DC Voltage | 600 V | ±(0.7%+3) |
| Resistance | 60 MΩ | ±(0.8%+2) |
| Capacitance | 62 mF | ±(4%+5) |
| Diode Test | around 3.0V | |
| General Specifications | ||
| Display | LCD, 6000 count, 39.3 mm × 26.5 mm | |
| Jaw Opening | 17 mm | |
| Auto Power Off | around 15 minutes | |
| Input Impedance for DCV | ≥10 MΩ | |
| Power | battery 1.5V (R03) × 2 pcs. | |
| Dimensions | 175 mm × 60 mm × 33.5 mm | |
| Weight | 170 g | |
User Manual
Download UNI-T UT211B user manual.
Package Contents
- Mini Clamp Meter UNI-T UT211B — 1 pc.
- Batteries — 2 pcs.
- Test Leads — 1 set
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
