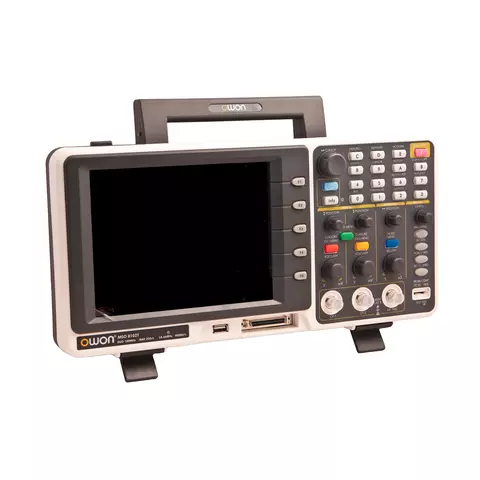

Mixed Signal Oscilloscope OWON MSO8102T
id: 856645
Mixed Signal Oscilloscope OWON MSO8102T
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 830.00
Overview
5 kg 110, 220 V Warranty: 12 months
Dual-channel mixed signal oscilloscope with 100 MHz bandwidth, up to 2 GSa/s real-time sample rate, 16-channel Logic Analyzer with 100 MHz bandwidth, and 8" display. Read more
USD 830.00
Buy wholesale and save
You may also like
Description
OWON MSO8102T is the new dual-channel mixed signal oscilloscope which combines a 100 MHz bandwidth, with a maximum real-time sample rate of 1 GSa/s per channel (2 GSa/s interleaved) and a record length of 2 MB per channel, 16-channel logic analyzer that has a sample rate of 20 Sa/s to 1 GSa/s per channel and a record length of 4 MB per channel for advanced debugging of embedded systems.
Features
- Bandwidth: 100 MHz.
- 2 channels + 16 for Logic Analyzer.
- Memory depth: oscilloscope 2 MB (per channel); logic analyzer 4 MB (per channel)
- Cursor measurements
- Math functions and FFT
- 20 automatic measurements
- 8-inch color LCD with an adjustable backlight.
- Standard interface: USB device, USB host, RS232 / VGA (optional)
Technical Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Real time sample rate | 2 GSa/s |
| Record length | max 2 MB |
| Waveform storage | 4 waveforms |
| Vertical sensitivity range | 2 mV/div - 10 V/div |
| Vertical resolution | 8 bit |
| Math | Add, Subtract, Multiply, Divide, FFT |
| Logic Analyzer Specifications | |
|---|---|
| Real time sample rate | 20 Sa/s - 2 GSa/s |
| Bandwidth | 100 MHz |
| Channels | 16 |
| Record length | 4 MB (max.) |
| Trigger mode | Edge, Bus, State, Data Alignment, Data Width, Distributed Queue |
| General Specifications | |
| Voltage | 100-240 V |
| Display | 8-inch color LCD (640 × 480) |
| Weight | 2.20 kg |
| Dimensions | 370 × 180 × 120 mm |
Video
Package Contents
- OWON MSO8102T digital oscilloscope (1 pc.)
- Passive probes (2 pcs.)
- Power cable (1 pc.)
- USB data cable (1 pc.)
- Logic analyzer module (1 pc.)
- User manual (1 pc.)
- CD (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
