Overview

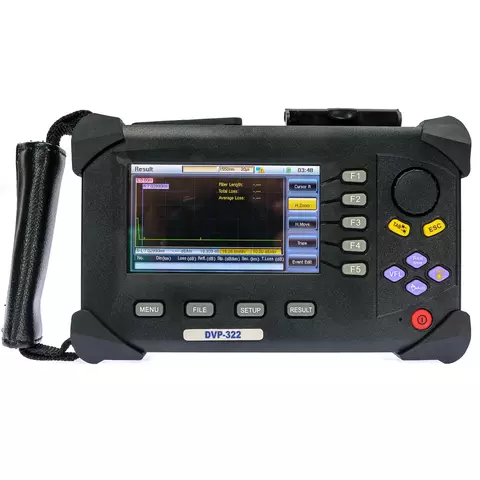

![Optical Time Domain Reflectometer DVP 322](https://i05.psgsm.net/gsm.com/p/842204/480/optical-time-domain-reflectometer-dvp-322.jpg)
3 kg 110, 220 V Warranty: 6 months
Designed to assess the length of the fiber and its overall attenuation together with splice and mated connector losses. 5 m to 160 km distance range, 5 ns to 20 μs pulse width. Read more
Description
DVP-322 optical time domain reflectometer that is designed to assess the length of the fiber and its overall attenuation together with splice and mated connector losses.
DVP-322 Optical Time Domain Reflectometer Features
- Simple one-button testing and analysis
- Small, portable, suitable for field work
- Automatic diagnostics and automatic correction
- 4.3 inch LCD display
- Replaceable lithium battery
- USB and network interface support
DVP-322 Optical Time Domain Reflectometer Technical Specifications
Wavelength | 1310 ±20/1550 ±20 nm |
Dynamic range | 34/32 dB |
Distance range | 5 m to 160 km |
Pulse width | 5 ns to 20 μs |
Measurement time | user defined with real-time measurement function |
Distance accuracy | ± (1 m +0.001% × measuring distance + sampling resolution) |
Attenuation accuracy | ±0.05 dB |
Loss limit | 0.01 dB |
Loss resolution | 0.001 dB |
Sampling points | 128000 |
Data storage | 3000 |
LCD type | 4.3 inch TFT color display (480 × 272) |
Laser adapter | FC / PC, SC / PC (optional) |
Interface | USB, RJ45 |
Battery | built-in rechargeable Li-ion battery charging time <4 hours working time >8 hours |
Power | AC/DC adapter input AC90-240 V |
Weight | 1 kg |
Dimensions | 200 × 126 × 62 mm |
DVP-322 Optical Time Domain Reflectometer Package Contents
- Optical time domain reflectometer DVP-322 (1 pc.)
- AC/DC power adapter/charger (1 pc.)
- CD with manual and software (1 pc.)
- User manual (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
