Oscilloscope Current Probe SIGLENT CP6030A

2 kg Warranty: 24 months

Current probe with 100 MHz bandwidth, peak current up to 50 A, fast and accurate capture the current wave, up to 1% accuracy, and low circuit insertion loss Read more

Price coming soon

Impossible to estimate the shipping cost

Description

SIGLENT CP6030A is an oscilloscope current probe with a 100 MHz bandwidth, designed for DC/AC current measurements. The probe offers high bandwidth, fast and accurate current waveform capture, with an accuracy of up to 1%, and low circuit insertion loss. It can be used with any oscilloscope that has a high-impedance BNC input.

Features

Highly accurate current measurements (5 A / 30 A)
Wide bandwidth: 100 MHz
DC/AC measurement capabilities
Over-current protection with dual indicators (buzzer and LED)
High and low range selection
Low current measurement capabilities
Degaussing and automatic zero setting
Digital control via panel soft keys for extended service life

Applications

Switching and linear power supply design
LED lighting design
Renewable energy resources
Frequency conversion household appliances
Electronic engineering experiments
Semiconductor device design
Inverter/transformer design
Electronic ballast design
Industrial control and consumer electronics
Engine-driven systems design
Power electronics and electrical drive experiments
Electric vehicle power system design

Technical Specifications

General Specifications
Bandwidth (-3 dB)	100 MHz
Rise Time	≤ 3.5 ns
Continuous Maximum Input Range	30 Arms
Max Peak Current Value	50 A
Range	5 A	1X
Range	30 A	10X
Overload	5 A	≥5 A
Overload	30 A	≥50 A
Current Transfer Ratio	5 A	1 V/A
Current Transfer Ratio	30 A	0.1 V/A
Resolution	5 A	1 mA
Resolution	30 A	10 mA
Accuracy (DC, 45-66 Hz)	5 A	±1%±1mA
Accuracy (DC, 45-66 Hz)	30 A	±1%±10mA
Delay	Probe	14 ns
Delay	BNC (1 m)	5 ns
Terminal Load	≥100 kΩ
Power Supply	DC 12V/1A (standard adapter)
Voltage of Insulated Wire	300V CAT I
Safety Compliance	EN61010-1: 2010+A1:2019 EN 61010-2-032:2019
EMC Standard	EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013
Measurement Conductor Diameter max.	5 mm
BNC Cable Length	1 m
Adapter Dimensions	62 mm × 58 mm × 29 mm, line: 1.5 m
Clamp Dimensions	176 mm × 39.5 mm × 18 mm
Termination Unit Dimensions	91.5 mm × 40 mm × 26.5 mm
Probe Weight	255 g
Operating Temperature and Humidity	0-40℃, 80% or less
Storage Temperature and Humidity	-10-50℃, 80% or less
Operating Altitude	2000 m
Storage Altitude	12000 m

User Manual

Download SIGLENT CP6030A user manual.

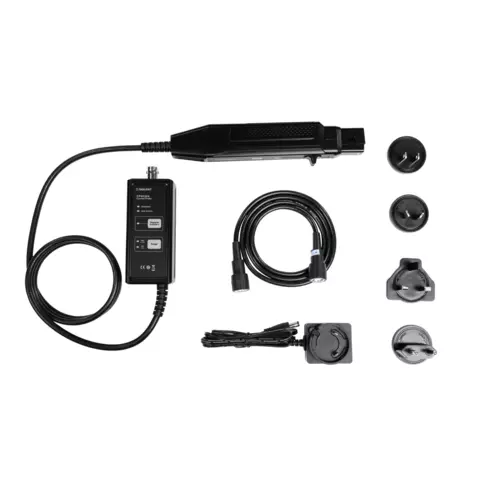

Package Contents

Oscilloscope Current Probe SIGLENT CP6030A — 1 pc.
DC-12V/1A Adapter — 1 pc.
BNC Connecting Line — 1 pc.
User Manual — 1 pc.
Guarantee Card — 1 pc.
Test Report — 1 pc.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
