OTDR Launch Cable Box ORIENTEK FL-OTDR-BOX-MM05
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview

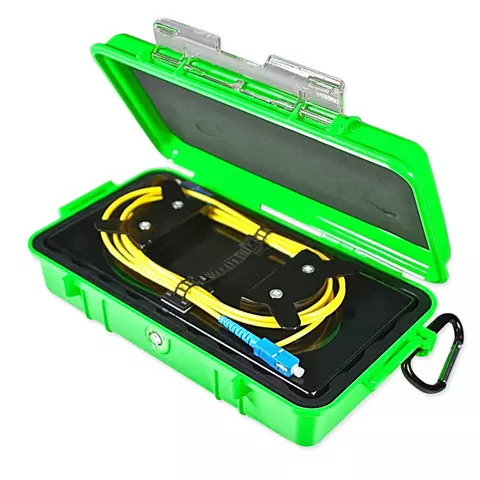

![OTDR Launch Cable Box ORIENTEK FL OTDR BOX MM05](https://i04.psgsm.net/gsm.com/p/848281/480/otdr-launch-cable-box-orientek-fl-otdr-box-mm05.jpg)
3.5 kg Warranty: 12 months
Used with optical time domain reflectometers (OTDRs) to help minimize the effects of the OTDRs launch pulse on measurement uncertainty. Fiber: MM (62.5/125 µm or 50/125 µm). Cable length: 500 m. Read more
Inform of price reduction
Description
OTDR Launch Cable Box (also known as a Dead Zone Eliminator) helps to minimize the effects of the OTDR's launch pulse thus improving the accuracy of the measurement. Fiber Launch Cable Box can be used for installation, testing and calibration.
Features
- Equipped with Pulse Suppressor, Launch Box and Delay Line.
- Water- and dustproof construction.
- Purge valve.
- Case can house up to 2000 meters of fiber.
Comparative Specifications
Model | Fiber Type | Length | Connector |
---|---|---|---|
Orientek FL-OTDR-BOX-SM05 | SM G652D | 500 m | FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
Orientek FL-OTDR-BOX-SM10 | SM G652D | 1000 m | FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
Orientek FL-OTDR-BOX-SM20 | SM G652D | 2000 m | FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
Orientek FL-OTDR-BOX-MM05 | MM (62.5/125 µm or 50/125 µm) | 500 m | FC/PC, SC/PC, ST/PC, LC/PC optional |
Orientek FL-OTDR-BOX-MM10 | MM (62.5/125 µm or 50/125 µm) | 1000 m | FC/PC, SC/PC, ST/PC, LC/PC optional |
Orientek FL-OTDR-BOX-MM20 | MM (62.5/125 µm or 50/125 µm) | 2000 m | FC/PC, SC/PC, ST/PC, LC/PC optional |
Orientek FL-OTDR-BOX-SM705 | SM G657A | 500 m | FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
Orientek FL-OTDR-BOX-SM710 | SM G657A | 1000 m | FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
Orientek FL-OTDR-BOX-SM720 | SM G657A | 2000 m | FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional |
Orientek FL-OTDR-BOX-OM305 | OM3 | 500 m | FC/PC, SC/PC, ST/PC, LC/PC optional |
Orientek FL-OTDR-BOX-OM310 | OM3 | 1000 m | FC/PC, SC/PC, ST/PC, LC/PC optional |
Orientek FL-OTDR-BOX-OM320 | OM3 | 2000 m | FC/PC, SC/PC, ST/PC, LC/PC optional |
Package Contents
- Carrying case — 1 pc.
- Cable — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
