Overview

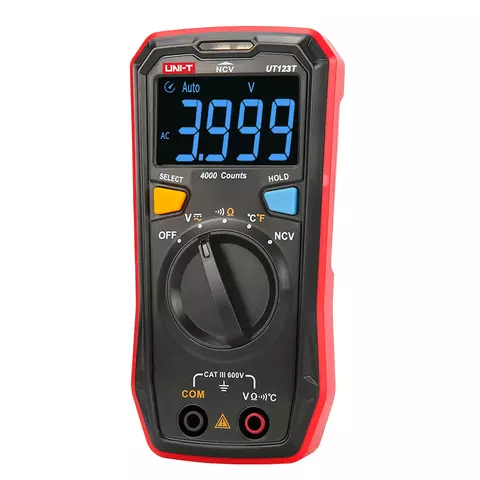

![Pocket sized Digital Multimeter UNI T UT123T](https://i27.psgsm.net/gsm.com/p/899571/480/pocket-sized-digital-multimeter-uni-t-ut123t.jpg)
0.3 kg Warranty: 24 months
Pocket-sized residential multimeter for measuring AC/DC voltage, resistance, temperature, and non-contact voltage detection and continuity testing. Read more
Inform of price reduction
Frequently bought together
Description
UNI-T UT123T is a pocket-sized digital multimeter designed for at-home use. Its compact structure makes it easy to hold in one hand, and the measurement results are displayed on an EBTN display (44 mm × 26 mm). The multimeter measures AC/DC voltage, resistance, temperature, and non-contact voltage detection and continuity testing.
Features
- Auto range.
- Non-contact voltage testing (NCV).
- Continuity test.
- Battery power indicator.
- Data hold.
- Auto power off.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 4 V/40 V/400 V/600 V | ±(0.5%+2) |
AC Voltage | 4 V/40 V/400 V/600 V | ±(1.0%+3) |
Resistance | 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/20 MΩ | ±(0.8%+2) |
Temperature | –40 °C~300 °C/–40 °F~572 °F | ±4 °C |
General Specifications | ||
Display | 4000 count, 44 mm × 26 mm | |
Power | 1.5V battery (R03) × 2 pcs. | |
Low Battery Indication | ≤2.7 V | |
Auto Power Off | after 15 minutes | |
Operation Temperature | 0 °C~40 °C | |
Dimensions | 130 mm × 65 mm × 28 mm | |
Weight | 130 g | |
Safety | CAT III 600V |
User Manual
Download UNI-T UT123T user manual.
Package Contents
- UNI-T UT123T pocket-sized digital multimeter — 1 pc.
- Test leads— 1 pair
- Thermocouple — 1 pc.
- Battery AAA 1.5 V — 2 pcs.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Type |
|
Range Selection |
|
Digit Capacity |
|
DC Voltage |
|
AC Voltage |
|
Resistance |
|
AC |
|
Capacitance |
|
DC |
|
Frequency |
|
Inductance |
|
Temperature |
|
Power |
|
Duty cycle |
|
True RMS |
|
Backlight |
|
PC connection |
|
Diode test |
|
Analog bar graph |
|
Transistor check |
|
Continuity test |
|
NCV |
|
Battery Testing |
|
