Overview

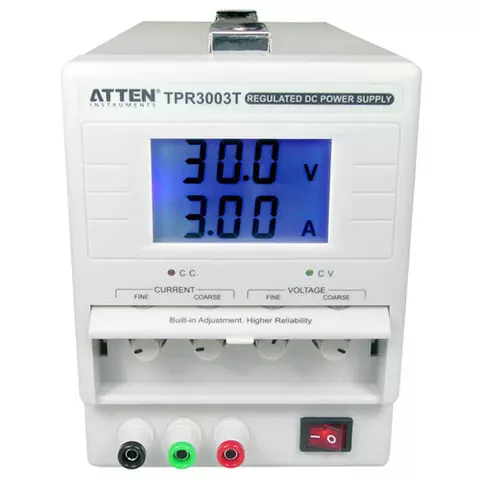

![Power Supply Unit ATTEN TPR3003T](https://i26.psgsm.net/gsm.com/p/821790/480/power-supply-unit-atten-tpr3003t.jpg)
5.7 kg 220 V Warranty: 6 months
ATTEN TPR3003T is a single DC power supply with continiously adjustable voltage and current. Read more
Buy wholesale and save
Inform of price reduction
You may also like
Description
ATTEN TPR3003T is a single DC power supply with continiously adjustable voltage and current. ATTEN power supply has large-screen LCD display and is useful for laboratories, teaching, electronics production lines and communications industry.
Features
- Constant current and constant voltage regulated power supply
- Multi-defensive function (current limiting voltage reduction, short circuit and overheating protection)
- Low ripple and noise
- Overload and reverse polarity protection
Comparative Specifications
Model | TPR3003T | TPR3005T |
---|---|---|
Rated Output Voltage | 0-30V (adjustable) | |
Rated Output Current | 0-3 A (adjustable) | 0-5 A (adjustable) |
Rated Output Power | 90W | 150W |
AC Input Voltage | AC 110V/220V ±10% 60Hz/50Hz | |
Ripple and Noise | ≤3mV (rms) | |
Load Stability | 0.1% ± 2mV | |
Voltage Display Accuracy | 0.1V ±2 digit | |
Current Display Accuracy | 0.01A ±2 digit | |
Power Stability | 0.1% ± 2mV | |
Insulation Resistance | ≥ 7MΩ | |
Cooling Method | Wind Cooling | |
Work Method | Constant-Current Constant-Voltage | |
Working Environment | 0-40 °C Relative Humidity <80% | |
Dimensions, mm | 275 × 125 × 170 | |
Weight, kg | 14 |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
