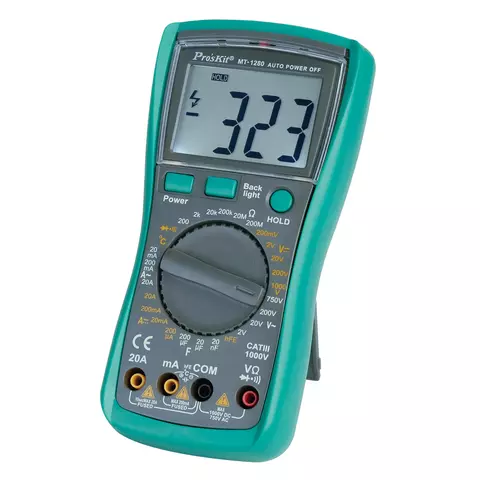

Digital multimeter Proskit MT-1280 with capacitance and temperature measurement function.
You'll find even more video reviews in the Video tab. Go and check it out!
| Model name | MT-1280 Digital Multimeter |
| Size (HxWxD) | 175x93x55 mm |
| Weight | 400g |
| Counts | 1999 |
| Digits | 3 1/2 |
| Auto/manual ranging | Manual |
| DC Voltage | 200mV/2V/20V/200V ±(0.5%+3d) |
1000V ±(0.8%+10d) |
|
| AC Voltage | 2V/20V/200V ±(0.8%+5d) |
750V ±(1.2%+10d) |
|
| DC Current | 200µA/20mA±(0.8%+10d) |
200mA ±(1.2%+10d) |
|
20A±(2.0%+5d) |
|
| AC Current | 20mA±(1.0%+5d) |
200mA ±(2.0%+5d) |
|
20A±(3.0%+10d) |
|
| Resistance | 200Om±(0.8%+5d) |
2/20/200KOm±(0.8%+3d) |
|
20MOm±(1.0%+25d) |
|
| Capacitance | 20nF±(2.5%+20d) |
20uF±(2.5%+20d) |
|
200uF±(5.0%+20d) |
|
| Temperature °C | (-20 °C ~1000 °C)<400±(1.0%+5d) |
(-20 °C ~1000 °C)>400 °F±(1.5%+15d) |
|
| Continuity with beeper | Yes |
| Diode | Yes |
| Transistor | Yes |
| Automatic power off | Yes |
| Low battery indication | Yes |
| ENH61010-1 CAT II/CAT III | CAT II 1000V |
| Battery | 9V(6F22) |
