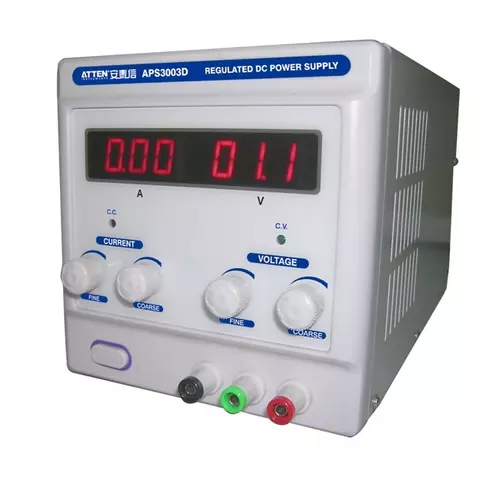

Regulated Power Supply Unit ATTEN APS3003D
id: 843011
Regulated Power Supply Unit ATTEN APS3003D
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 64.00
Overview
6 kg 220 V Warranty: 6 months
Constant current (0-3 A) and voltage (0-30 V) supply unit with one adjustable channel. Read more
USD 64.00
Buy wholesale and save
Description
ATTEN APS3003D supplies DC current (0-3 A) and voltage (0-30 V) and is ideal for educational institutions and research labs. ATTEN APS3003D has 1 adjustable channel.
Features
- 1 adjustable channel
- Low ripple and noise level
- Overload and reverse polarity protection
Technical Specifications
| Rated output voltage | 0-30 V (Adjustable) | |
| Rated output current | 0-3 A (Adjustable) | |
| AC input voltage | AC 110 V/220 V, 60 Hz/50 Hz | |
| Ripple and noise | ≤3 mV (rms) | |
| Load stability | ≤0.3% | |
| Display resolution | voltage 0.1 V and current 0.01 A | |
| Protection | current limited lower voltage, short circuit protection and over-temperature protection. |
|
| Insulation Resistance | ≥ 7 MΩ | |
| Cooling method | Strong wind cooling | |
| Dimensions | 260 × 150 × 160 mm | |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
