Set of Replacement Air Nozzles AOYUE QFP
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 105.00
Notify
when in stock
when in stock
Overview
![Set of Replacement Air Nozzles AOYUE QFP](https://i45.psgsm.net/gsm.com/p/8410/480/set-of-replacement-air-nozzles-aoyue-qfp.jpg)

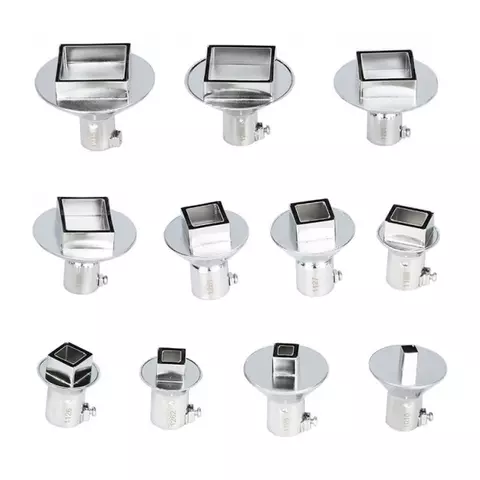

Set of Replacement Air Nozzles AOYUE QFP contains 11 nozzles suitable for QFP soldering. Read more
Buy wholesale and save
Inform of price reduction
Description
The set contains 11 replacement air nozzles suitable for soldering QFP-elements of different sizes.
Replacement air nozzle model | Element type and dimensions (mm) | Replacement air nozzle size (mm) | |||
---|---|---|---|---|---|
A | B | C | D | ||
1125 | QFP 10x10 | 10.2 | 10.2 | 10 | 10 |
1126 | QFP 14x14 | 15.2 | 15.2 | 15 | 15 |
1127 | QFP 17.5x17.5 | 19.2 | 19.2 | 19 | 19 |
1128 | QFP 14x20 | 15.2 | 21.2 | 15 | 21 |
1229 | QFP 28x28 | 29.5 | 29.7 | 29 | 29 |
1215 | QFP 42.5x42.5 | 42.5 | 42.5 | 40 | 40 |
1261 | QFP 20x20 | 20.2 | 20.2 | 21 | 21 |
1262 | QFP 12x12 | 12.2 | 12.2 | 12 | 12 |
1263 | QFP 28x40 | 27.7 | 39.7 | 29 | 39 |
1264 | QFP 40x40 | 40.2 | 40.2 | 39 | 39 |
1265 | QFP 32x32 | 32.2 | 32.2 | 31 | 31 |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Replacement Air Nozzle is compatible with the following models of Hot Air Soldering Stations |
|
