SIGLENT SDS2000HD-PA is a software feature for SIGLENT oscilloscopes of the SDS2000X HD series, which unlocks the power analysis option for the purpose of standardization, automation, and acceleration of measurements and streamlining of power supply testing.
Attention! To use the complete functionality of the option, the SIGLENT DF2001A deskew fixture and at least one current probe and are required.
The software option enables the following measurements:
| Input Parameters | |
|---|---|
| Power quality | Power factor, real power, apparent power, reactive power, phase angle, I&V crest |

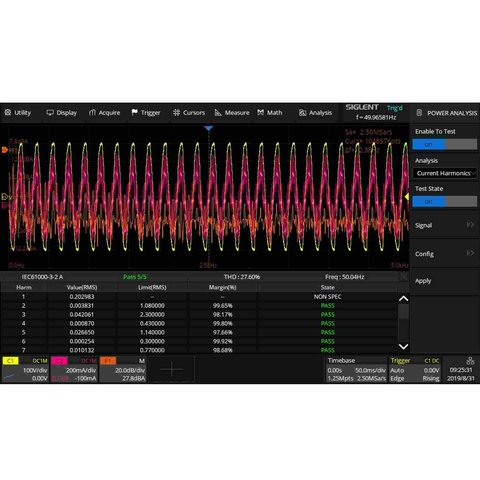

| Current harmonics | Based on IEC 61000-3-2 A/B/C/D, up to 40th harmonics |
| Inrush current | |
| Switching Parameters | |
| Switching losses | Power loss, energy loss. Conduction: waveform, Rds (on), Vce (sat) |
| Slew rate | Top/base of voltage/current |
| Modulation | Ave, AC-RMS, Period, Width, Duty, Rise/Fall time etc. |
| Output Parameters | |
| Output ripple | |
| Turn on/Turn off | |
| Transient response | |
| Efficiency | |
| Frequency Response Measurements | |
| Power supply rejection ratio (PSRR) | |
| Control loop response (Standard function available without the PA option) | |
Datasheet
Download SIGLENT SDS2000HD-PA datasheet
Compatibility
- SIGLENT DF2001A deskew fixture

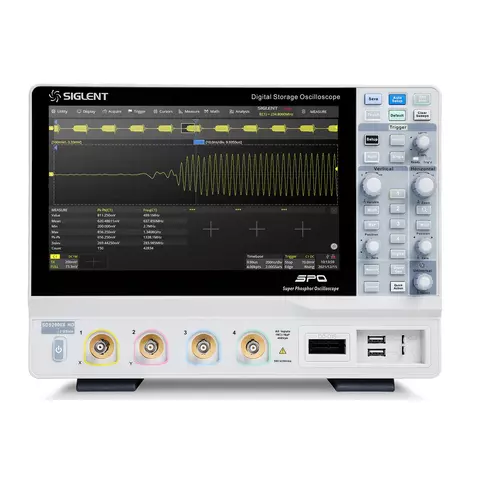

- SIGLENT SDS2104X HD digital oscilloscope
