Overview

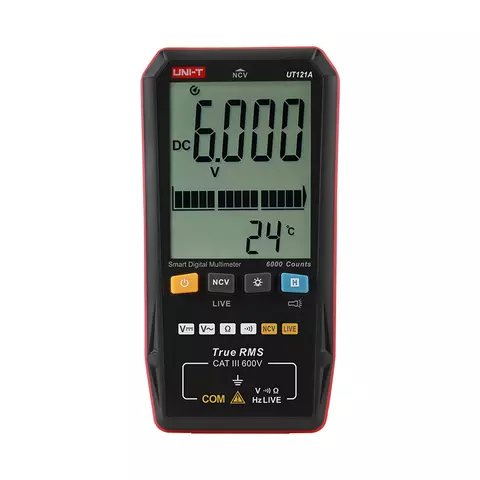

Smart Digital Multimeter UNI T UT121A
4 (1)
0.3 kg Warranty: 24 months
Ultra-slim True RMS multimeter with auto-ranging. Measures AC/DC voltage, AC voltage frequency, and resistance. Read more
Price coming soon
Price coming soon
Impossible to estimate the shipping cost

Description

UNI-T UT121A is an ultra-thin True RMS multimeter with a large 6000-count display and auto-ranging for AC/DC voltage, AC voltage frequency and resistance measuring. The multimeter can display two measurement results at the same time, which is convenient for home and non-professional users. This is a fast and easy to use electronic device.

Features

  • True RMS
  • AC/DC 600V voltage measurement
  • Full-scale input protection
  • Non-contact voltage detection (NCV)
  • LIVE function for distinguishing between live and neutral wires
  • Large 6000-count LCD
  • 17 mm ultra-thin body
  • Intelligent identification gear

Technical Specifications

Function Range Model
UT121A UT121B UT122
AC Voltage 6.000 V/60.00 V/600.0 V ±(1.0%+3) - ±(1.0%+3)
6.000 V/60.00 V/600.0 V/750.0 V - ±(1.5%+3) -
AC Voltage Frequency 10 Hz-1 kHz ±(0.5%+2) ±(0.5%+2) ±(0.5%+2)
DC Voltage 6.000 V/60.00 V/600.0 V ±(0.7%+3) - ±(0.5%+3)
6.000 V/60.00 V/600.0V/1000.0 V - ±(1.2%+3) -
Resistance 6000 Ω/60.00 KΩ/600.0 KΩ/6.000 MΩ/10.00 MΩ ±(2.0%+5) - -
600.0 Ω/6.000 KΩ/60.00 KΩ/600.0 KΩ/60.00 MΩ - ±(2%+5) -
600.0 Ω/6.000 KΩ/60.00 KΩ/600.0 KΩ/6.000 MΩ/60.00 MΩ - - ±(2.0%+5)
Capacitance 60.00 nF/600.0 nF～600.0 μF/6000 uF～60.0 mF - ±(10%+5) -
99.99 nF/999.9 nF～9.999 μF/9.999 mF～99.99 mF - - 10%
Frequency 10.00 Hz-10.00 MHz - ±(0.1%+3) ±(0.1%+3)
Temperature –40°C～1000°C/–40°F～1832°F - ±3°C/±6°F ±3°C/±6°F
General Specifications
Display Count 6099 6099 6099
Dual Display + + +
Auto Range + + +
NCV Detection + + +
LIVE Detection + + +
Diode Test - + +
Continuity Buzzer + + +
LCD High Voltage Alert + + +
Flashlight + + +
Low Battery Indication + + +
Auto Power Off + + +
Data Hold + + +
Category Ratings CATIII 600V
Power 1.5V AAA battery × 2 pcs.
Display 52 × 66 mm 65 × 55 mm
Dimensions 143 × 74 × 17 mm 144 × 71 × 15.5 mm
Multimeter Weight 142 g 157 g

User Manual

PDF  Download UNI-T UT121A/UT121B Multimeter User Manual

Package Contents

  • UNI-T UT121A Digital Multimeter — 1 pc.
  • Batteries — 1 set
  • Test Leads — 1 set
  • Cover — 1 pc.
  • User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Type
  • digital
Range Selection
  • auto range
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • no
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • yes
Battery Testing
  • no
Digit Capacity
  • 6099
Resistance
  • up to 10 MΩ
