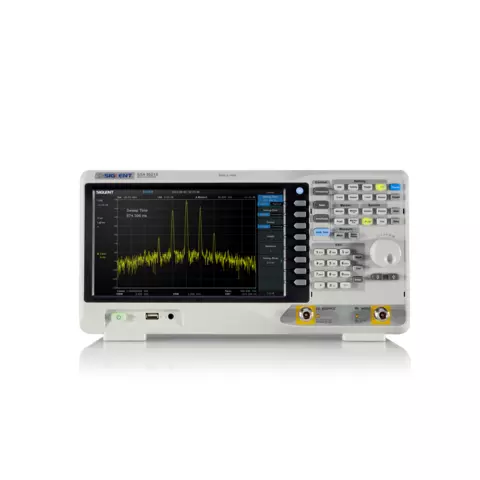

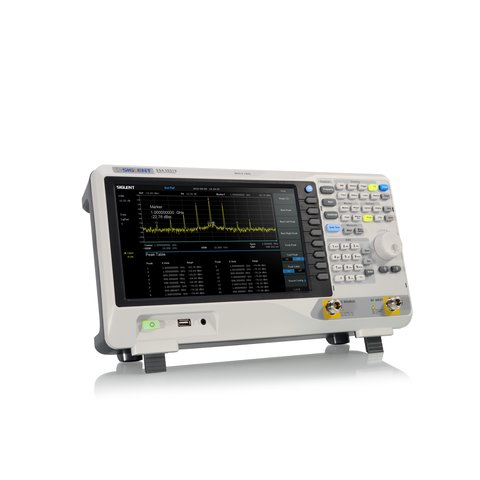

Spectrum Analyzer SIGLENT SSA3021X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 1395.00
Overview
Video
6.44 kg 110, 220 V Warranty: 36 months
SSA3000X series spectrum analyzer with a frequency range from 9 kHz up to 2.1 GHz. 10.1-inch WVGA Display. Read more
USD 1395.00
Buy wholesale and save
Description
SIGLENT SSA3021X is a SSA3000X series spectrum analyzer with a frequency range from 9 kHz up to 2.1 GHz. This device is lightweight and small-size, with an user friendly interface, concise style of display, reliable measurement precision and plenty of RF measurement functions. Applicable to research and development, education, production, maintenance and other related fields, meets a wider range of application requirements.
Attention, gifts! SIGLENT TG-SSA3000X Tracking Generator Kit included in the kit.
Features
- All-Digital IF Technology
- Frequency Range from 9 kHz up to 2.1 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Total Amplitude Accuracy < 0.7 dB
- 10 Hz Minimum Resolution Bandwidth (RBW)
- Standard Preamplifier
- 10.1-inch WVGA (1024x600) Display
- Up to 3.2 GHz Tracking Generator Kit (optional)
- EMI Pre-compliance Measurements Kit (optional)
Technical Specifications
| Model | SSA3032X | SSA3021X |
| Frequency Range | 9 kHz ~ 3.2 GHz | 9 kHz ~ 2.1 GHz |
| Resolution Bandwidth (RBW) | 10 Hz~1 MHz, in 1-3-10 sequence | 10 Hz~1 MHz, in 1-3-10 sequence |
| Displayed Average Noise Level | -161 dBm/Hz, Normalize to 1 Hz (typ.) | -161 dBm/Hz, Normalize to 1 Hz (typ.) |
| Phase Noise | <-98 dBc/Hz@1 GHz, 10 kHz offset | <-98 dBc/Hz@1 GHz, 10 kHz offset |
| Amplitude Precision | < 0.7 dB | < 0.7 dB |
| Max. Input Voltage | 50 V | |
| Input Impedance | 50 Ω nominal | |
| Display | 25.65 cm (10.1") TFT Color (1024 × 600 Pixel) | |
| Interfaces | USB, USB-Host, LAN | |
| Dimensions | 393 mm × 207 mm × 116.5 mm (15.4" × 8.1" × 4.5") | |
| Weight | 4.6 kg (10.14 lbs) | |
Video
Data Sheet
Download SIGLENT SSA3032X Data Sheet.
User Manual
Download SIGLENT SSA3032X User Manual.
Package Contents
- SIGLENT SSA3021X — 1 pc.
- USB Cable — 1 pc.
- Power Cord 220V EU — 1 pc.
- SIGLENT TG-SSA3000X Tracking Generator Kit — 1 pc.
- CD — 1 pc.
- Quick Start — 1 pc.
- Calibration Certificate — 1 pc.
Optional Accessories
- SIGLENT AMK-SSA3000X Advanced Measurement Kit
- SIGLENT EMI-SSA3000X EMI Measurement Module
- SIGLENT SRF5030 Near Field Probe Set
