Overview

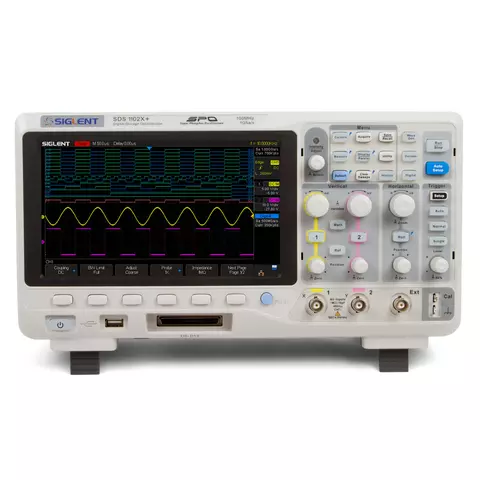

![Super Phosphor Oscilloscope SIGLENT SDS1102X+](https://i65.psgsm.net/gsm.com/p/865988/480/super-phosphor-oscilloscope-siglent-sds1102xplus.jpg)
7 kg 110, 220 V Warranty: 36 months
Desktop 2-channel phosphor digital oscilloscope. Bandwidth 100 MHz. Sample rate of 1 GSa/s. Capture rate up to 60.000 wfms/s. Built-in waveform generator. Connects to a logic analyzer. Read more
Description
SIGLENT SDS1102X+ is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 100 MHz and a sample rate of 1 GSa/s.
Features
- New generation of SPO (Super Phosphor Oscilloscope).
- Low background noise.
- Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root).
- 8 inch TFT LCD.
- Abundant interfaces: USB Host, USB Device (USBTMC), LAN, Pass/Fail, Trigger Out.
Comparative Specifications
Model | SDS1102X+ | SDS1102X | SDS1102X-S | SDS1202X | SDS1202X-S |
---|---|---|---|---|---|
Bandwidth | 100 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
Channels | 2 + 1 EXT | ||||
Real-time sampling rate | 1 GSa/s | ||||
Waveform generator | + | - | + | - | + |
Logic analyzer connection | + | - | - | - | - |
Memory depth | 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel) | ||||
Waveform capture rate | 60.000 wfms/s | ||||
Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video, supports HDTV | ||||
Languages | English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic | ||||
I/O | USB Host, USB Device, LAN, Pass/Fail, Trigger Out | ||||
Display | 8 inch TFT LCD (800×480) | ||||
Power | AC 100-240 V, 45-440 Hz |
Technical Specifications
Input | |
---|---|
Channels | 2+EXT |
Impedance | DC: (1 MΩ±2%) || (18 pF ±2 pF)50 Ω: 50 Ω±2% |
Coupling | DC, AC, GND |
Max input voltage | 1 MΩ ≤400 Vpk (DC + Peak AC <=10 kHz), 50 Ω ≤5 Vrms |
Passive probes | ×1; ×10 |
Probe attenuator | 1 X, 10 X, 50 X, 100 X, 500 X , 1000 X |
Vertical scale (probe 1x) | 500 μV/div – 10 V/div (1-2-5) | Horizontal System |
Time base scale | 2.0 ns/div ~ 50 s/div |
Waveform capture rate | up to 60,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) |
Intensity grading | 256 levels |
Display format | Y-T, X-Y, Roll |
Time base accuracy | ±25 ppm | Trigger System |
Trigger Mode | Auto, Normal, Single |
Edge Trigger Slope | Rising, Falling, Rising & Falling |
Edge Trigger Source | CH1/CH2 /EXT/(EXT/5)/AC Line | Video Trigger |
Sampling type | real-time |
Max memory depth | 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel) |
Average | averages: 4,16, 32,64,128,256,512,1024 |
Waveform interpolation | sinx/x, Linear |
Math functions | + , - , * , / , FFT , d/dt , ∫dt , √ |
FFT window | Rectangular, Blackman, Hanning, Hamming | Specifications |
Display type | 8 inch TFT-LCD |
Display resolution | 800 × 480 |
Display color | 24 bit |
Contrast (typical) | 500:1 |
Range | 8 x 14 divisions |
Language | Simplified Chinese, Traditional Chinese, English, French, Japanese, Korean, German, Russian, Italian, Portuguese |
Power | 100 ~ 240 V AC, 50/60/400 Hz, 50 W Max |
Dimensions | 380 × 140 × 270 |
Weight | without package: 3.26 kg; with package: 4.25 kg | Environments |
Temperature | operating: 10 °C~ +40 °C; non-operating: -20 °C~ +60 °C |
Humidity | operating: 85% RH, 40 °C, 24 hours; non-operating: 85% RH, 65 °C , 24 hours |
height | operating: ≤3000 m; non-operating: ≤15,266 m |
Waveform capture rate up to 400.000 wfms/s
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus5.jpg)
256 intensity grading and color temperature display
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SDS1000xplus1.jpg)
Color temperature display
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus7.jpg)
Record up to 14 Mpts
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus9.jpg)
Abundant trigger function
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus10.jpg)
Decoding function
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus11.jpg)
History waveforms (History) mode and segmented acquisition (Sequence)
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus12.jpg)
Comprehensive statistical functions
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus13.jpg)
Advanced math function
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus14.jpg)
Built-in 25 MHz function/arbitrary waveform generator
![SIGLENT SDS1102X+](https://f00.psgsm.net/product/865988/SIGLENT-SDS1102X-plus15.jpg)
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Oscilloscope — 1 pc.
- Passive Probe — 2 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
- Certificate — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
