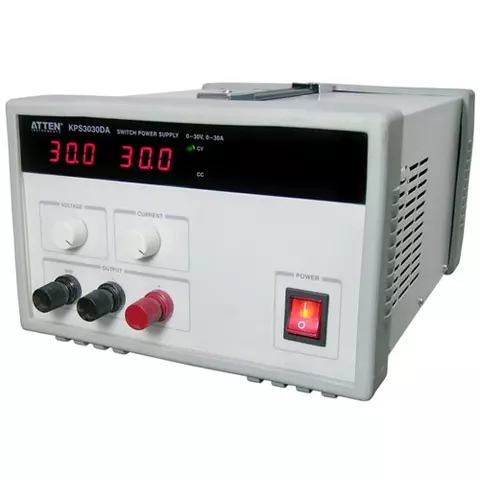

Switching DC Power Supply ATTEN KPS3030DA
id: 821793
Switching DC Power Supply ATTEN KPS3030DA
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
sales team
Overview
![Switching DC Power Supply ATTEN KPS3030DA](https://i27.psgsm.net/gsm.com/p/821793/480/switching-dc-power-supply-atten-kps3030da.jpg)
7.2 kg 220 V Warranty: 6 months
ATTEN KPS3030DA is a single-channel DC power supply with adjustable constant-current and constant-voltage. Read more
Description
ATTEN KPS3030DA is a single-channel DC power supply with adjustable constant-current and constant-voltage. ATTEN power supply unit with the LED display is safe, reliable and useful for laboratories, teaching, electronics production lines and communications industry.
ATTEN KPS3030DA Switching Power Supply Features
- Constant current and constant voltage regulated power supply
- Multi-defensive function
ATTEN KPS3030DA Switching Power Supply Technical Specifications
Model | KPS3030DA | KPS3050DA |
---|---|---|
Rated output voltage | 0-30V (adjustable) | |
Rated output current | 0-30A (adjustable) | 0-50A (adjustable) |
AC Input voltage range | AC 230V ±10% 50Hz | |
Load stability | 0.1% ±2mV | |
Voltage display accuracy | 0.1V ±2 digit | |
Current display accuracy | 0.1A ±3 digit | |
Power stability | 0.1% ±2mV | |
Insulation resistance | ≥ 7MΩ | |
Cooling method | Wind cooling | |
Work method | Constant-current constant-voltage | |
Working environment | 0-40°C relative humidity <80% | |
Dimensions, mm | 390 × 250 × 200 | |
Weight, kg | 6.5 |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
