Overview
6.5 kg 220 V Warranty: 6 months
ATTEN KPS3050DA is a single-channel DC power supply with adjustable constant-current and constant-voltage. Read more
USD 399.00
Buy wholesale and save
Description

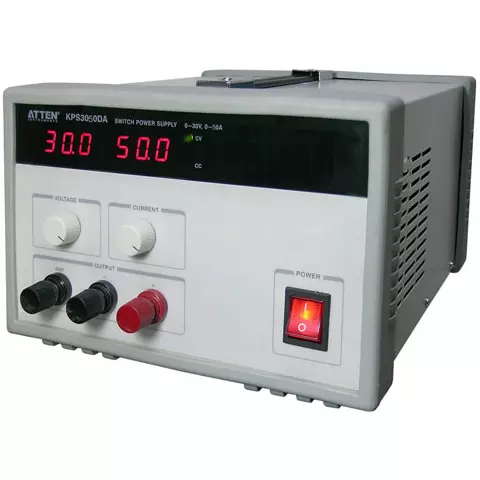

ATTEN KPS3050DA is a single-channel DC power supply with adjustable constant-current and constant-voltage. ATTEN power supply unit with the LED display is safe, reliable and useful for laboratories, teaching, electronics production lines and communications industry.
Features
- Constant current and constant voltage regulated power supply
- Multi-defensive function
ATTEN KPS3050DA Switching power Supply Technical Specifications
| Model | KPS3030DA | KPS3050DA |
|---|---|---|
| Rated output voltage | 0-30V (adjustable) | |
| Rated output current | 0-30A (adjustable) | 0-50A (adjustable) |
| AC input voltage range | AC 230V ±10% 50Hz | |
| Load stability | 0.1% ±2mV | |
| Voltage display accuracy | 0.1V ±2 digit | |
| Current display accuracy | 0.1A ±3 digit | |
| Power stability | 0.1% ±2mV | |
| Insulation resistance | ≥ 7MΩ | |
| Cooling method | wind cooling | |
| Work method | Constant-current constant-voltage | |
| Working environment | 0-40°C relative humidity <80% | |
| Dimensions, mm | 390 × 250 × 200 | |
| Weight, kg | 6.5 | |
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
