Overview

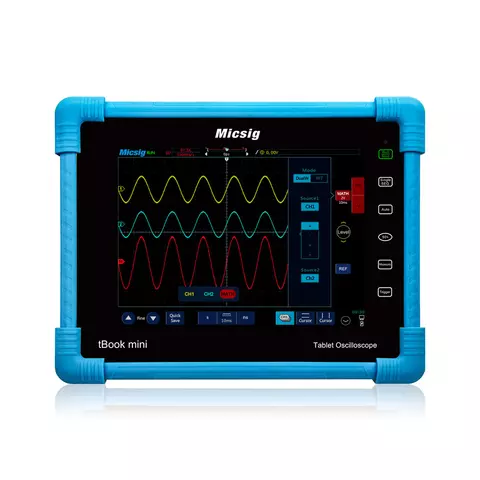

![Tablet Digital Oscilloscope Micsig TO1072](https://i94.psgsm.net/gsm.com/p/866338/480/tablet-digital-oscilloscope-micsig-to1072.jpg)
3 kg 110, 220 V Warranty: 12 months
Micsig tBook mini series 2-channel handheld digital oscilloscope with 8-inch touchscreen, 100 MHz bandwidth, 1 GSa/s real time sampling rate, 14 M memory depth. Read more
Description
Micsig TO1072 tBook Mini Tablet Oscilloscope is a 2-channel digital oscilloscope with 8-inch touchscreen, 70 MHz bandwidth and 1 GSa/s real-time sample rate.
Features
- Up to 80,000 wfm/s waveform capture rate
- 8" TFT LCD & 800×600 pixel high-resolution multi-touch capacity screen
- Gradient waveform display with 256 intensity levels
- 7 types of trigger functions: Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge, and Video
- Built-in 8 GB storage capacity, waveforms and screenshots can be viewed and edited in scope
- 31 type of auto measurements
- Various I/O ports: LAN, Wifi, USB2.0, USB Device, HDMI, Trigger out, Pass/Fail
- Up to 5 hours operation with optional Li-ion battery
Technical Specifications
TO1072 | TO1074 | TO1102 | TO1104 | |
---|---|---|---|---|
Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz |
Input channels | 2 | 4 | 2 | 4 |
Sample rate | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s |
Memory depth | 14 Mpts | 14 Mpts | 28 Mpts | 28 Mpts |
Max. capture rate | 80,000 wfm/s | 80,000 wfm/s | 80,000 wfm/s | 80,000 wfm/s |
Interfaces | LAN, Wifi, USB2.0, USB Device, HDMI, Trigger out, Pass/Fail | |||
Screen | 8" TFT LCD (800*600) | |||
Dimensions | 250 × 210 × 55 mm |
14 Mpts memory depth
![Memory Depth](https://f00.psgsm.net/product/866338/Micsig_1.png)
Maximum capture rate up to 80,000 waveforms per second
![Capture Rate](https://f00.psgsm.net/product/866338/Micsig_2.png)
Gradient waveform display with 256 intensity levels
![Display](https://f00.psgsm.net/product/866338/Micsig_3.png)
Lower noise floor
![Noise floor](https://f00.psgsm.net/product/866338/Micsig_4.png)
31 types of auto measurements
![Auto measurement](https://f00.psgsm.net/product/866338/Micsig_5.jpg)
Various trigger functions
![Trigger Functions](https://f00.psgsm.net/product/866338/Micsig_6.png)
Waveform save and recall options
![Save and Recall Options](https://f00.psgsm.net/product/866338/Micsig_7.jpg)
Fast and easy adjustment
![Adjustment](https://f00.psgsm.net/product/866338/Micsig_8.png)
Waveform storage
![Waveform Storage](https://f00.psgsm.net/product/866338/Micsig_9.jpg)
Zoom function
![Zoom function](https://f00.psgsm.net/product/866338/Micsig_10.jpg)
Math operations
![Math Operations](https://f00.psgsm.net/product/866338/Micsig_11.png)
Keyboard for file naming
![Keyboard](https://f00.psgsm.net/product/866338/Micsig_12.jpg)
Data Sheet
Download Micsig tBook mini TO1000 Data Sheet.
Package Contents
- Micsig TO1072 Tablet Digital Oscilloscope — 1 pc.
- USB data cable — 1 pc.
- Power adapter — 1 pc.
- CD — 1 pc.
- Probes — 2 pcs.
- User manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
