Telephone Line Tester Senter ST230F

Name: Telephone Line Tester Senter ST230F
Brand: Senter
SKU: 843926
Price: 110.00 USD
Availability: OutOfStock

id: 843926

Overview

Description

Delivery

Payment

Warranty

USD 110.00

Overview

1 kg Warranty: 6 months

Telephone tester used to check telephone line fault points and positions. Read more

USD 110.00

Buy wholesale and save

USD 110.00

Impossible to estimate the shipping cost

Description

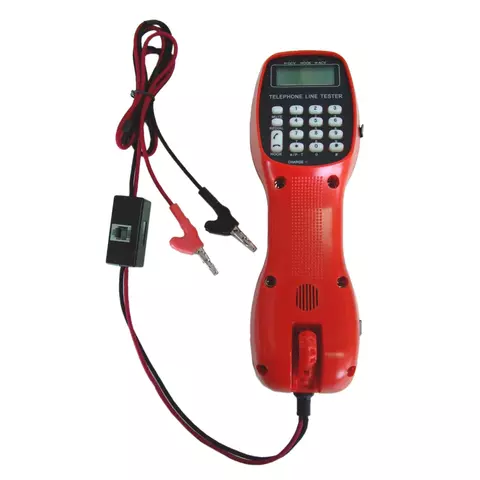

Senter ST230F Telephone Line Tester is used to check telephone line fault points and positions.

Features

Telephone line fault checking.
DC, insulation test.
May be used as a phone: dial, call, receive calls to check the possible phone problems.
Monitor high resistance.
ISDN/ADSL identification.
Hands-free function (loudspeaker).
Calling number display in FSK and DTMF modes, dialing telephone number display in FSK and DTMF modes.
Tone/pulse function.
High voltage indication (data indicator will light).
Low voltage warning, automatic power off and energy-saving design.
Memory key (10 groups of 18 digits).
NI-MH battery can continuously work more than 12 hours.
LCD for displaying telephone numbers and test results.

User Manual

Download Senter ST230F User Manual.

Technical Specifications

DC V test
Range	0-260 V
Error	+/- 5%
Insulation impedance test
Range	0~10 MΩ; Error: ≤+/-5%+/-0.1 MΩ 10~30 MΩ; Error: ≤+/-10% +/-0.5 MΩ
General specifications
Ring distance	≤ 2 km
Open resolution	≤ 2 km
Monitoring resistance	≥1 MΩ
Battery	Rechargeable 9 V NI-MH battery
Temperature	-10~55 °C
Relative humidity	10%~95%
Environment noise	≤60 dB
Atmospheric pressure	86~106 Kpa
Weight	0.5 kg
Dimension	232 × 73 × 95 mm

Package Contents

Telephone Line Tester Senter ST230F — 1 pc.
RJ11 test cord — 1 pc.
Charger — 1 pc.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
