Trinocular Microscope ST60-24T2 with lighting
id: 8597
Trinocular Microscope ST60-24T2 with lighting
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
10.5 kg 220 V Warranty: 6 months
45° inclined binocular/trinocular head, 360° rotatable.
Illumination: Built-in and built-out illumination system
Working distance: 100mm Read more
Discontinued
Description

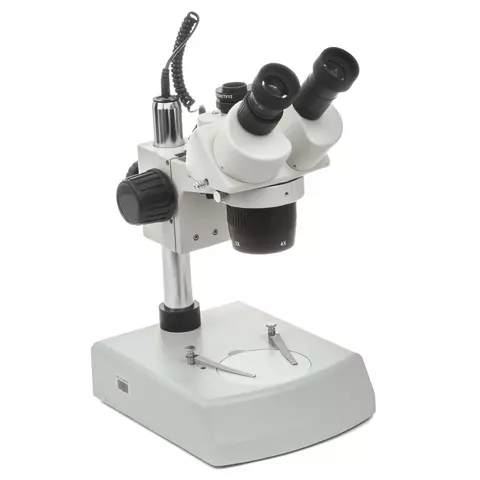

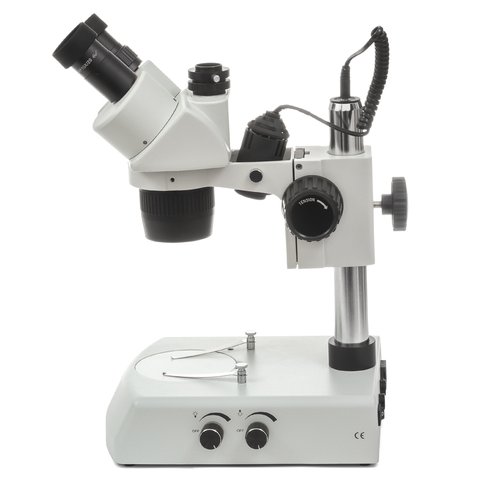

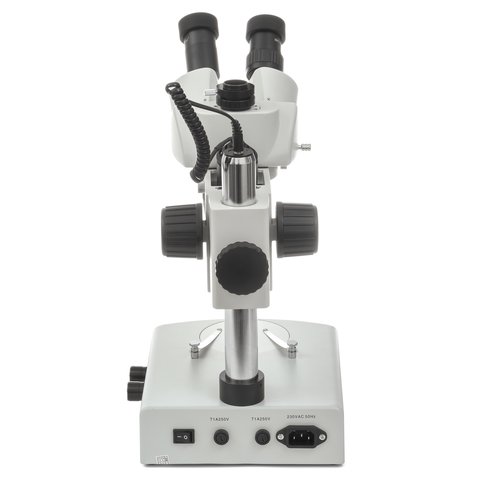

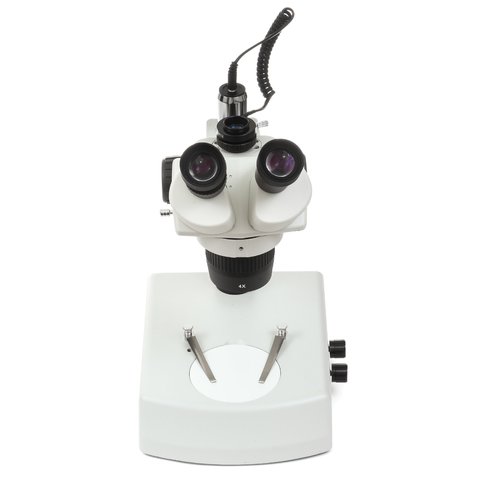

ST60-24T2 is a trinocular microscope width rotating 2x/4x zoom objective on a bay.

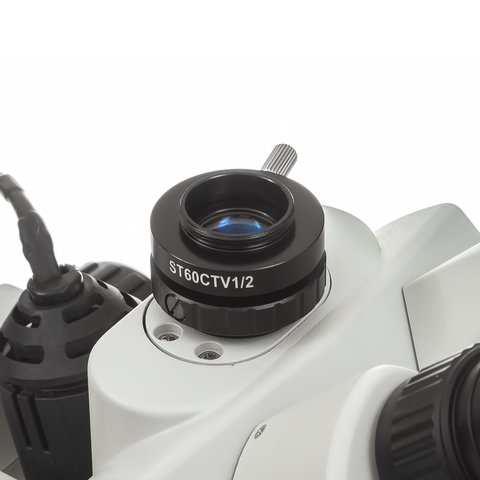

Third ocular is developed especially for USB-cameras. It allow user to conduct a research and simultaneously record data. To achieve one of the USB-cameras can be used. Precise optic system with an ocular adjustment angle up to 45°. During objective rotation to the 180° point it is possible to switch between 2x/4x zoom options, which provide clear stereo image and wide field of view. ST60-24T2 can be used in electronic and precise machine-building industry for assembling and inspecting products with irregular surface.
Note! We recommend using the protective glass while conducting soldering operations under this microscope.
Features
- Working distance can be optionally increased to 165 mm using the auxiliary objective ST60 0.5x WD165.
- Zoom can be optionally increased to 40x/80x using the additional eyepiece WF20x/10mm.

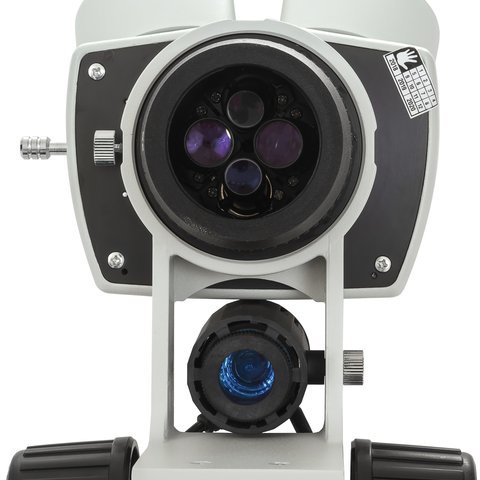

- Highlighting and backlighting. It can be optionally improved with YK-S24T LED annular illuminator and upper illuminator SZM-L1.
Technical Specifications
| Ocular Lens | 10X |
| Objective Lens | 2X/4X |
| Oculars Adjust Angle | 45° |
| Microscope Rotating Angle | 360° |
| Distance Between Oculars | 55-75 mm |
| Dioptric Correction | +- 5 dioptre |
| Working Distance | 100 mm |
| Zoom | 20x/40x |
Optical Parameter
| Magnification of objective | WF10X20 | WF15X15 | WF20X10 | |||
|---|---|---|---|---|---|---|
| Total magnification | Viewing Field of specimen | Total magnification | Viewing Field of specimen | Total magnification | Viewing Field of specimen | |
| 1X | 10X | 20 | 15X | 15 | 20X | 10 |
| 2X | 20X | 10 | 30X | 7.5 | 40X | 5 |
| 3X | 30X | 6.7 | 45X | 5 | 60X | 3.3 |
| 4X | 40X | 5 | 60X | 3.75 | 80X | 2.5 |
ST60 Auxiliary Objective
| Auxiliary objective | Magnification | Working distance (mm) |
| 0.5 | 0.5X | 165 |
| 1.5 | 1.5X | 45 |
| 2 | 2X | 30 |
Specification and Option
| Specification | Model | ||||||
| Parts | Description | ST60-24B1 | ST60-24B2 | ST60-24B3 | ST60-24T1 | ST60-24T2 | ST60-24T3 |
|---|---|---|---|---|---|---|---|
| Eyepiece | SZM-EWh10X/20mm | Yes | Yes | Yes | Yes | Yes | Yes |
| SZM-EWh10X/20rmm | – | – | – | – | – | – | |
| SZM-EWh15X/15mm | – | – | – | – | – | – | |
| SZM-EHWh20X/10mm | – | – | – | – | – | – | |
| Objective | 1X/100mm | – | – | – | – | – | – |
| 2X/100mm | Yes | Yes | Yes | Yes | Yes | Yes | |
| 3X/100mm | – | – | – | – | – | – | |
| 4X/100mm | Yes | Yes | Yes | Yes | Yes | Yes | |
| Eye-cap | – | Yes | Yes | Yes | Yes | Yes | Yes |
| Head | ST6024 binocular | Yes | Yes | Yes | – | – | – |
| ST6024TR Trinocular | – | – | – | Yes | Yes | Yes | |
| Focusing Bracket | SZM-A1 | Yes | Yes | Yes | Yes | Yes | Yes |
| Stand | SZM-ST1 | Yes | – | – | Yes | – | – |
| SZM-ST2 | – | Yes | – | – | Yes | – | |
| SZM-ST3 | – | – | Yes | – | – | Yes | |
| SZ-STL1 | – | – | – | – | – | – | |
| SZ-STL2 | – | – | – | – | – | – | |
| Light | SZM-L1 | – | Yes | Yes | – | Yes | Yes |
Package Contents
- ST60-24T2 binocular microscope — 1 pc.
- 2x/4x objective lens — 1 pc.
- SZM-EWh10X/20 mm ocular lens — 1 pc.
- Satinated glass plate — 1 pc.
- Protective holster — 1 pc.
- Rubber ocular straps — 1 pc.
- User's Guide — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Maximum Zoom Ratio |
|
| Illumination |
|
| Zoom Rate Control Method |
|
