Victor 4105A Digital Earth Resistance Tester
Overview
Description
Delivery
Payment
Warranty
USD 93.94
Notify
when in stock
when in stock
Overview

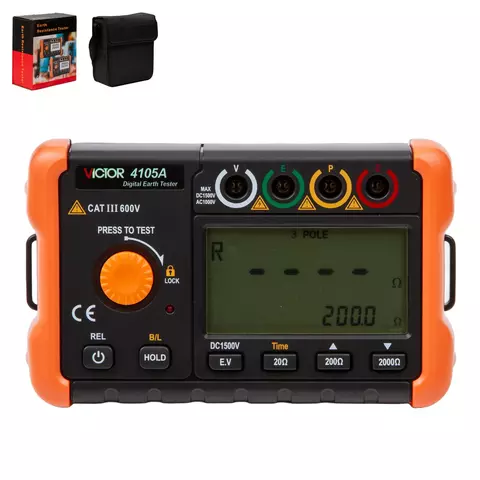

![Victor 4105A Digital Earth Resistance Tester](https://i64.psgsm.net/gsm.com/p/910965/480/victor-4105a-digital-earth-resistance-tester.jpg)
1 kg Warranty: 12 months
High-accuracy and versatile 2000 Ω earth resistance and 200 V AC voltage tester with a 1999-count LCD display and dust- and moisture-proof design Read more
Buy wholesale and save
Inform of price reduction
Description
Victor 4105A is a digital electrical tester for measuring insulation resistance in the range of 20 to 2000 Ω and ground voltage up to 200 V. The tester has a dust- and moisture-proof design, which makes it an excellent choice for field installation and maintenance operations.
Features
- 1999-count LCD display with backlight;
- Wide range of applications: Victor 4105A can be used for installation, maintenance and repair operations on LED lighting, lightning protection, grounding systems, and energy system equipment;
- Low power consumption (800 mW in no-load testing jobs) ensures long-term operation in the field;
- Over-range indication;
- Overload protection;
- Low battery indication;
- Auto power-off;
- Small size and user-friendly design;
- Convenient shoulder strap
Technical Specifications
Measurement Functions
Specification | Measurement range | Resolution | Accuracy |
Ground resistance | 20 Ω | 0.01 Ω | ±(2%+0.1) |
200 Ω | 0.1 Ω | ±(2%+3) | |
2000 Ω | 1 Ω | ||
Ground voltage (AC voltage) | 200 V | 0.1 V | ±(2%+6) |
General Specifications
Display count | 1999 | ||
Display | LCD display with backlight, 84.8 × 59.8 mm | ||
Frequency response | 50~200 Hz | ||
Input impedance | 1 MΩ | ||
Overload protection | 200 V | ||
Minimum power consumption | 800 mW | ||
Operating temperature | 0~+40°C | ||
Power supply | AA 1.5 V battery × 8 pcs | ||
Size | 175 × 110 × 70 mm | ||
Weight | 680 g (with batteries) |

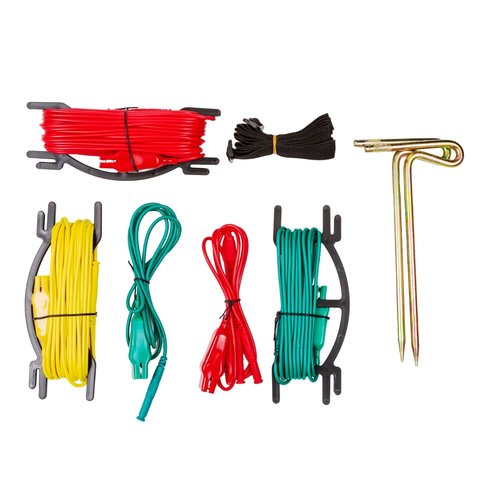

Package Contents
- Victor 4105A digital earth resistance tester – 1 pc
- Grounding rod – 2 pcs
- Standard testing wire set (incl. 1.6 m red and 1.6 m green wires) – 1 pc
- Auxiliary testing wire set (incl. 15 m red, 10 m yellow, and 5 m green wires) – 1 pc
- Canvas storage bag – 1 pc
- Shoulder strap – 1 pc
- User manual – 1 pc
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
