Video Interface for Jeep Renegade of 2016– MY with PAS

id: 874861
Video Interface for Jeep Renegade of 2016– MY with PAS
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 250.00
USD 135.00

Overview

Video Interface for Jeep Renegade of 2016– MY with PAS
1 kg Warranty: 12 months
Video interface for Jeep Renegade, equipped with 5" monitor. Supports dynamic parking guidelines (parking assistance system). Read more
USD 250.00
USD 135.00
USD 250.00
USD 135.00
Impossible to estimate the shipping cost
Note! This item is shipped within 15 working days.

Frequently bought together

Car Wired Wireless Mirroring System with A V and HDMI Outputs
ID: 905341

Car Wired / Wireless Mirroring System with A/V and HDMI Outputs
USD 90.00
Adapter for wired and wirelees connection of iOS and Android devices to the car multimedia system. Allows you to play video and audio on the connected monitor. Supports screens mirroring to display navigation, menu, applications, etc. on the connected monitor.
Availability in stock: HK
ID: 905341 0.5 kg

Description

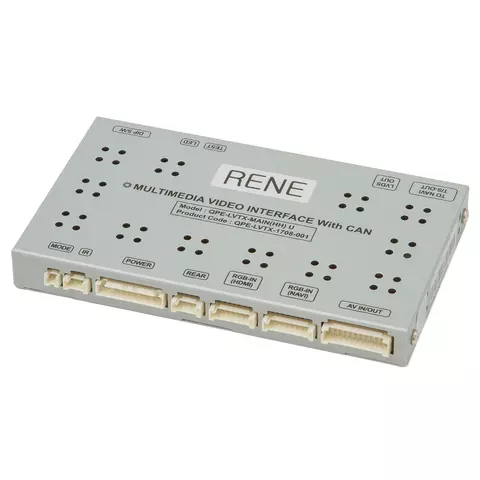

Car video interface for Jeep Renegade, equipped with 5" monitor. The device allows you to connect additional devices, such as external navigation box, rear view camera, TV receiver to the OEM car display.

Additional Functions

  • Modes switch by OEM button
  • Active parking guidelines (parking assistance system)
  • Automatic display of rear view camera image while reversing

Technical Specifications

  • Inputs:
    • AV input × 2
    • CVBS input (for rear view camera) × 1
    • Analog RGB input × 1
    • Input for OEM display × 1
  • Outputs:
    • CVBS output × 2
    • Audio output × 1
    • LCD output × 1
  • Power:
    • Input voltage: 10 V DC ~ 16 V DC
    • Max. power consumption: 12 W
  • Inputs switch:
    • Video input mute function: possible to mute each input with DIP switches
    • Switching video sources with a remote control
    • OEM button

Compatibility

Model Model year Monitor size
From To
Renegade 2016 – 5"


Jeep Renegade head unit

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Manuals

Package Content

  • Video interface
  • Sub-board
  • Remote controller with IR cable
  • Connection cables
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.

Specifications

Video Interface is compatible with the following models of Cars
  • Jeep
Video Interface is compatible with Head Units
Touch screen control of the connected devices
  • No
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
