Video Interface with LVDS Input for Toyota Camry of 2018– MY with Panasonic Head Unit
id: 886186
Video Interface with LVDS Input for Toyota Camry of 2018– MY with Panasonic Head Unit
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 260.00
USD 199.00
Add to cart
Overview
![Video Interface with LVDS Input for Toyota Camry of 2018– MY with Panasonic Head Unit](https://i30.psgsm.net/gsm.com/p/886186/480/video-interface-with-lvds-input-for-toyota-camry-of-2018-my-with-panasonic-head-unit.jpg)
0.6 kg
Availability in stock:
HK
Warranty: 12 months This device allows to connect additional video sources, such as a rear view camera, to the OEM car monitor. Equipped with parking guidelines function (PAS). Read more
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
Frequently bought together
Description

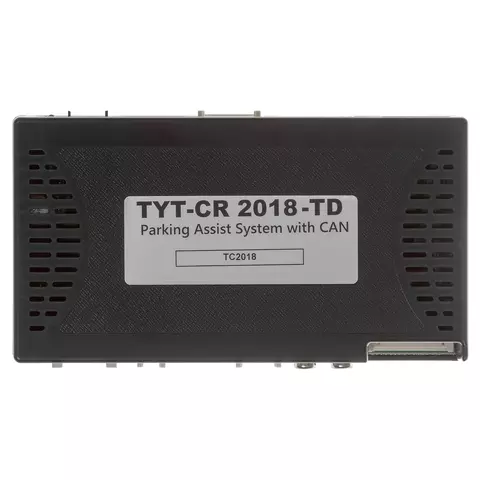

Car video interface is used to connect additional video devices, for example, navigation boxes, front view cameras or rear view cameras, smartphone mirroring adapter to the OEM monitor. This device is compatible with Toyota Camry of 2018 and the following model years, equipped with Panasonic multimedia system with 8" monitor.
Video interface offers simple and convenient switching between connected sources using OEM buttons.
Features
- Built-in parking assistance function (PAS)
- High image quality thanks to LVDS input
- Simple and convenient switching between connected sources using OEM buttons
- Automatic display of the image from the rear view or front view camera (depends on the gear)
- Compact size and easy installation
Technical Specifications
- Inputs
- Analog RGB (for navigation boxes) × 1
- LVDS (for navigation and additional video sources) × 1
- CVBS (for rear view camera) × 1
- CVBS (for front view camera) × 1
- Outputs
- LCD (for LCD screen) × 1
- Mode switching
- OEM button through CAN bus
- possible to switch between AV sources with DIP S/W
- General
- Input voltage 8-24 V DC
- Consumed power 12 W
- Dimensions: 159 × 83 × 22 mm
Compatibility
Model | Model years | Head unit | |
---|---|---|---|
From | To | ||
Camry | 2018 | – | Panasonic with 8" monitor |
![Toyota Camry](https://f00.psgsm.net/product/886186/2021-toyota-camry-interior.jpg)
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
Package Contents
- Main video interface box
- Sub-board
- OSD keyboard
- Connection cables
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with Head Units | |
Video Interface is compatible with Camera Connection Solutions | |
Touch screen control of the connected devices |
|
Adaptive parking guidelines |
|
Modes switch by OEM buttons |
|
CAN bus support |
|
Navigation input |
|
DVD/HD/TV connection input |
|
Rear view camera input |
|
Built-in navigation |
|
