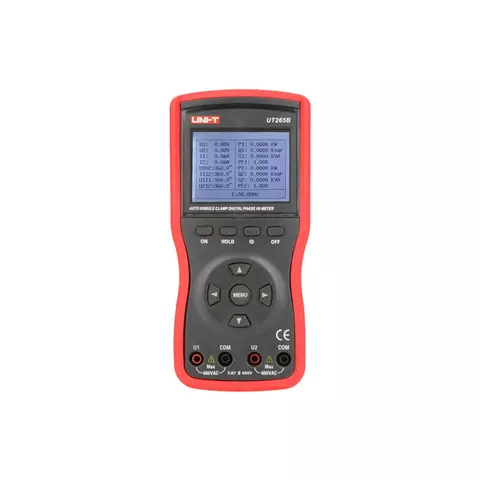

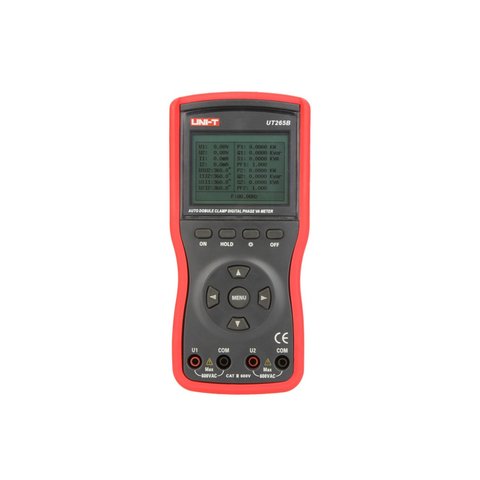

2-phase Digital Clamp Meter UNI-T UT265B
id: 886895
1 kg Warranty: 24 months
Powerful 2-phase digital clamp meter that is used to measure AC current, AC voltage, frequency, power (active, reactive, apparent), phase angle, and power factor. Read more
Buy wholesale and save
Inform of price reduction
Frequently bought together
UNI-T UT265B is a powerful 2-phase digital clamp meter that is used to measure AC current, AC voltage, frequency, power (active, reactive, apparent), phase angle, and power factor.
Features
- Measurement functions:
- AC current,
- AC voltage,
- frequency,
- power (active, reactive, apparent),
- phase angle,
- power factor.
- Data hold.
- Large backlit LCD.
- Auto range.
- Out-of-range indication..
- Two sets of current clamps are included (black and yellow).
- Auto power off after 15 minutes.
- Low battery indication.
- Around 1500 measurement results can be stored.
- RS-232 interface.
- Low power consumption (40 mA).
- Anti-vibration, anti-skidding, high-insulation case.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC Current | 0.0 mA - 20 A | ±(1.5% + 3) |
AC Voltage | 0.00 V - 600 V | ±(1.5% + 3) |
Frequency | 45 Hz - 65 Hz | ±(2.0% + 3) |
Active Power | 0.0 W - 12 kW | ±(3.0% + 3) |
Reactive Power | 0.0 VAR - 12 kVAR | ±(3.0% + 3) |
Apparent Power | 0.0 VA - 12 kVA | ±(3.0% + 3) |
Power Factor | -1 ~ +1 | ±(0.03) |
Phase Angle | 0°~360° | ±(1.0°) |
General Specifications | ||
Measurement Speed | 2 times/s | |
Clamp Size | 7,5 mm × 13 mm (optional) / 35 mm × 40 mm (optional) | |
Input impedance for DCV | ≥ 2 MΩ | |
Display | LCD, 240 × 160 dots | |

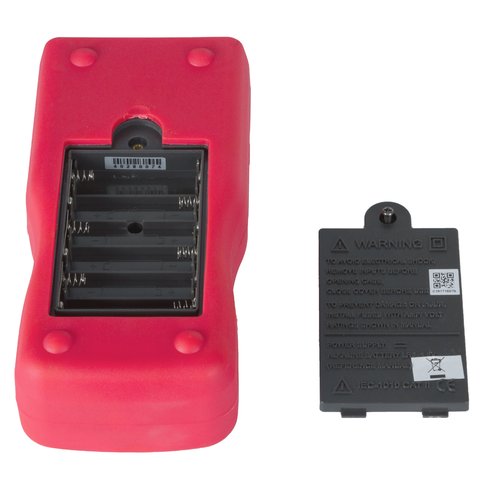

Power | 6 batteries LR6 (1.5 V) | |
Dimensions | 196 × 92 × 54 mm | |
Weight | 550 g |
User Manual
Download UNI-T UT265B User Manual.
Sofware
Download UNI-T UT265B Sofware.

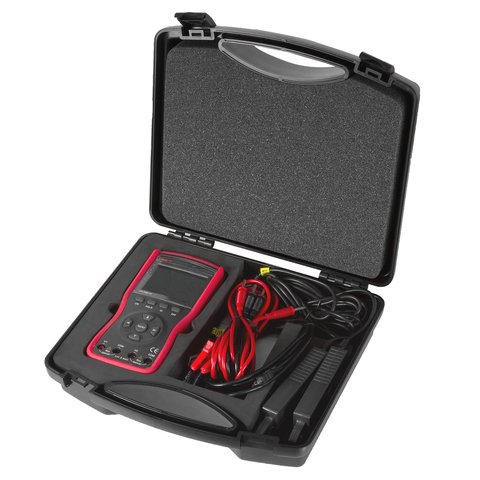

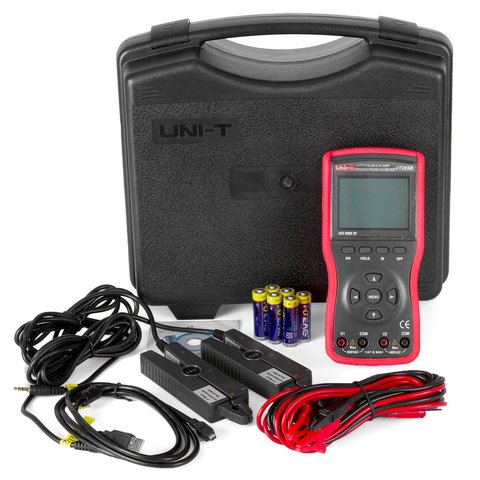

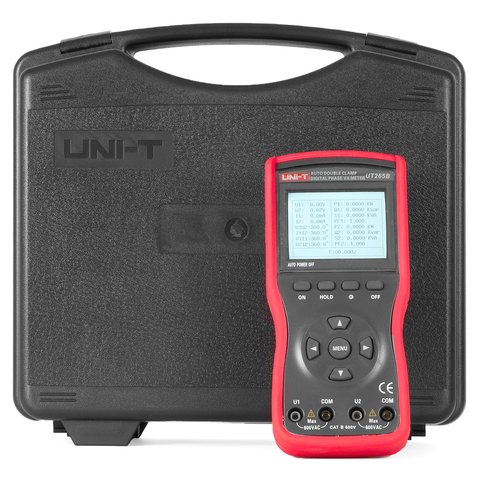

Package Contents
- 2-phase Digital Clamp Meter UNI-T UT265B — 1 pc.
- Current Clamps — 2 pcs.
- Test Leads — 4 pcs.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
