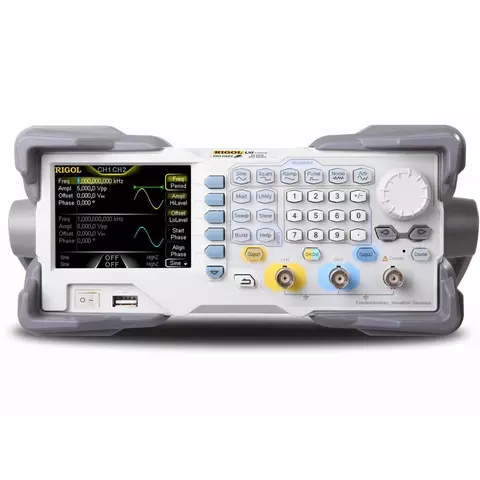

Arbitrary Waveform / Function Generator RIGOL DG1022Z
id: 896648
7 kg
Availability in stock:
HK
Warranty: 24 months 2-channel waveform generator with 25 MHz max. frequency, 200 MSa/s sample rate, and 2 Mpts (standard) of arbitrary waveform memory. Unique SiFiII technology. Read more
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
RIGOL DG1022Z is a multi-functional arbitrary waveform / function generator which adopts innovative SiFi (Signal Fidelity) technology for stable, high-precision, pure and low distortion signals. The excellent system features, user friendliness and versatile functions combination makes this arbitrary waveform / function generator a perfect solution for IC, serial bus and in-circuit function tests, simulation of sensors and natural environment signals. RIGOL DG1022Z dual channel arbitrary waveform / function generator has an intuitive user interface and simple front panel layout and instructions.
Features
- SiFi (Signal Fidelity) technology: generate arb waveform point-by-point, restore signal distortionless, precisely adjustable sample rate and low jitter (200 ps).
- 2 channel output.
- 5 standard waveforms and 160 stored arbitrary waveforms:
- Sine;
- Pulse;
- Square;
- Ramp;
- Noise.
- 200 MSa/s of sample rate, 14 bits of vertical resolution.
- Versatile modulation and variety of waveforms:
- AM;
- FM;
- PM;
- ASK;
- FSK;
- PSK;
- PWM;
- Sweep;
- Burst.
- Convenient arbitrary waveform editing interface.
- Standard waveform summing function.
- Standard interfaces: USB host and device, LAN.
- 3.5 inch TFT color display.
Technical Specifications
Standard waveforms | ||||
---|---|---|---|---|
Waveforms | Sine, Square, Ramp, Pulse, Noise, Arb | |||
Sine | 1 μHz to 25 MHz | |||
Square | 1 μHz to 25 MHz | |||
Pulse | 1 μHz to 15 MHz | |||
Ramp | 1 μHz to 500 kHz | |||
Harmonic | 1 μHz to 10 MHz | |||
White noise | 25 MHz | |||
Arbitrary waveform | 1 μHz to 10 MHz | |||
Max. output frequency | 25 MHz | |||
Sample rate | 200 MSa/s | |||
Modulation | AM, FM, PM, ASK, FSK, PSK, PWM | |||
Square wave characteristic | ||||
Rise/fall time | <10 ns | |||
Overshoot | <5% | |||
Duty cycle | 0.01% to 99.99% (limited by the current frequency setting) | |||
Jitter | ≤5 MHz 2 ppm + 200 ps | |||
Pulse wave characteristics | ||||
Pulse width | ≥16 ns (limited by the current frequency setting) | |||
Rising/falling Edge | ≥10 ns | |||
Overshoot | <5% | |||
Jitter | ≤5 MHz 2 ppm + 200 ps | Ramp wave characteristics | ||
Linearity | ≤1% of peak output (typical, 1 kHz, 1 VPP, 100% symmetry) | |||
Symmetry | 0% to 100% | |||
Arbitrary wave characteristics | ||||
Waveform length | 2Mpts (std.) 16Mpts (opt.) |
|||
Vertical resolution | 14 bits | |||
Sample rate | 200 MSa/s | |||
Minimum rising/falling time | <5 ns | |||
Jitter (RMS) | ≤5 MHz 2 ppm + 200 ps | |||
Output characteristics | ||||
Amplitude | ≤10 MHz: 1.0 mVpp to 10 Vpp ≤30 MHz: 1.0 mVpp to 5.0 Vpp ≤60 MHz: 1.0 mVpp to 2.5 Vpp |
|||
Amplitude accuracy (1 kHz) |
± 1% of the setting + 1 mV | |||
Amplitude flatness (sine wave, 2.5 Vpp) | ≤10 MHz: ±0.1 dB ≤60: MHz ±0.2 dB |
|||
DC offset | ||||
Range | ±5 Vpk ac + dc | |||
Accuracy | 1% of setting + 5mV + 0.5% of amplitude | |||
AM modulation | ||||
Carrier waveforms | Sine, Square, Ramp, Arb (except DC) | |||
Source | Internal / external | |||
Modulating waveforms | Sine, Square, Ramp, Noise, Arb | |||
Depth | 0% to 120% | |||
Frequency | 2 mHz to 1 MHz | |||
FM modulation | ||||
Carrier waveforms | Sine, Square, Ramp, Arb (except DC) | |||
Source | Internal / external | |||
Modulating waveforms | Sine, Square, Ramp, Noise, Arb | |||
Modulating frequency | 2 mHz - 1 MHz | |||
PM modulation | ||||
Carrier waveforms | Sine, Square, Ramp, Arb (except DC) | |||
Source | Internal / external | |||
Modulating waveforms | Sine, Square, Ramp, Noise, Arb | |||
Phase deviation | 0° to 360° | |||
ASK modulation | ||||
Carrier waveforms | Sine, Square, Ramp, Arb (except DC) | |||
Source | Internal / external | |||
Modulating waveforms | 50% duty cycle square | |||
Key Frequency | 2 mHz to 1 MHz | |||
FSK modulation | ||||
Carrier waveforms | Sine, Square, Ramp, Arb | |||
Source | Internal / external | |||
Modulating waveforms | 50% duty cycle square | |||
Frequency | 2 mHz to 1 MHz | |||
PWM modulation | ||||
Carrier waveforms | Pulse | |||
Source | Internal / external | |||
Modulating waveforms | Sine, Square, Ramp, Noise, Arb | |||
Width deviation | 0% to 100% of the pulse width | |||
External Modulation Input | ||||
Input range | 75 mVRMS to ±5 Vac + dc | |||
Input bandwidth | 50 kHz | |||
Input impedance | 1000 Ω | |||
General specification | ||||
Display | 3.5-inch TFT LCD (320 × 240 pixels) | |||
Interfaces | USB Host, USB Device, LAN | |||
Power | 100 V ~ 240 V (45 Hz ~ 440 Hz), CATII | |||
Dimentions | 261.5 × 112 × 318.4 mm | |||
Weight | 4.5 kg |
Quick Start Guide
Download RIGOL DG1032Z quick start guide.
Datasheet
Download RIGOL DG1032Z datasheet.
Package Contents
- Waveform generator RIGOL DG1032Z — 1 pc
- USB cable — 1 pc
- BNC cable — 1 pc
- Power cord — 1 pc
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
