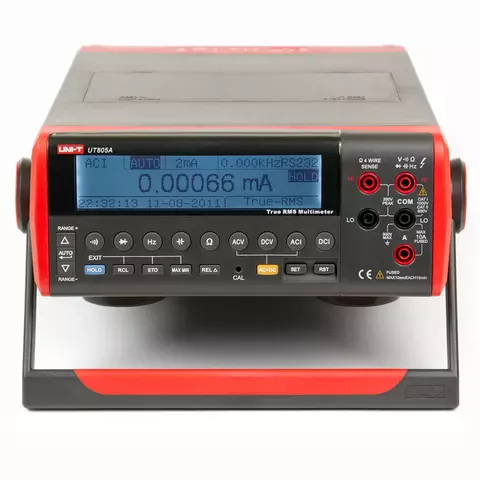

Bench Type Digital Multimeter UNI-T UT805A
id: 830022
6.1 kg Warranty: 24 months
Desktop digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, frequency, capacitance. It also performs continuity and diode tests. Read more
You may also like
This UNI-T UT805A bench type digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- resistance
- frequency
- diode test
- continuity test
- Auto ranging
- Data hold
- Low battery indication
Video Review
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Display | 199999 digit LCD, backlight, 128 × 28 mm | |
DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 1000 V |
Accuracy | ±(0.015%+3) | |
AC voltage | Range | 2 V / 20 V / 200 V / 750 V |
Accuracy | ±(0.2%+100) | |
DC current | Range | 2 mA / 200 mA / 10 A |
Accuracy | ±(0.03%+10) | |
AC current | Range | 2 mA / 200 mA / 10 A |
Accuracy | ±(0.3%+100) | |
Resistance | Range | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ |
Accuracy | ±(0.02%+6) | |
Capacitance | Range | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF |
Accuracy | ±(2%+5) | |
Frequency | Range | 10 Hz ~ 60 MHz |
Accuracy | ±(0.1%+3) | |
Power | AC 220 V / 50 Hz | |
Dimensions | 300 × 245 × 105 mm | |
Weight | 2.4 kg |
User Manual
Download UNI-T UT805A User Manual.
Sofware
Download UNI-T UT805A Sofware.
Package Contains
- Multimeter UNI-T UT805A (1 pc.)
- Test lead (1 pc.)
- Test line (1 pc.)
- Multi-purpose socket (1 pc.)
- RS232C interface cable (1 pc.)
- USB interface cable (1 pc.)
- AC 220 V power cord (1 pc.)
- User manual (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
