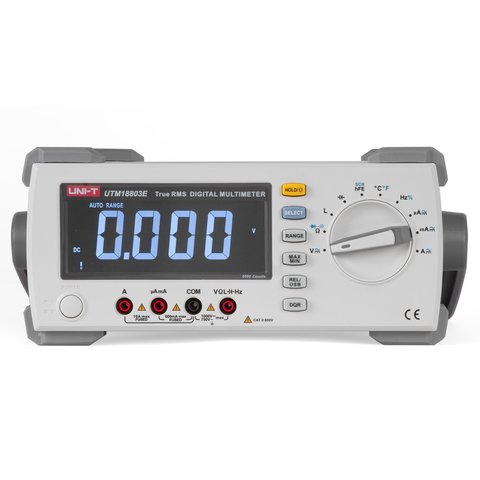

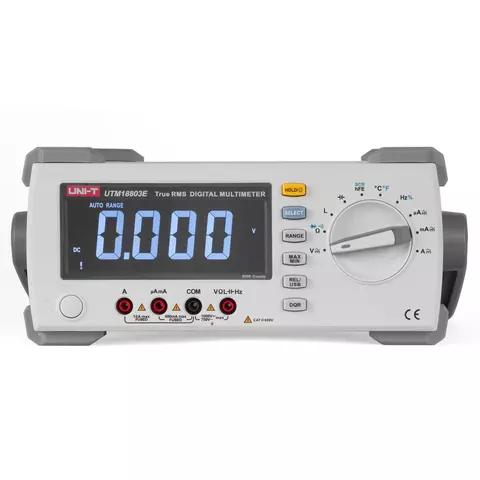

Benchtop Digital Multimeter UNI-T UT8803E
id: 890103
3.2 kg Warranty: 24 months
AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, inductance, temperature measurementes and diode, transistor and continuity tests, SCR thyristor test. Read more
Inform of price reduction
You may also like
Frequently bought together
UNI-T UT8803E Benchtop Digital Multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, inductance, temperature measurementes and diode, transistor and continuity tests, SCR thyristor test. Having a large EBTN LCD display and a USB interface, it features overload protection for all ranges and special appearance design. It is an ideal tool for electricians, production QA, maintenance, research, and education.
Features
- True RMS
- Auto range
- Diode/transistor
- SCR thyristor test
- Inductance measurement
- USB interface
- 6000 count EBTN LCD screen
- Data hold
- MAX/MIN mode
- Continuity buzzer
Technical Specifications
Function | Range |
---|---|
DC voltage | 1000 V |
AC voltage | 750 V |
DC current | 10 A |
AC current | 10 A |
Resistance | 60 MΩ |
Capacitance | 6 mF |
Frequency | 600 Hz~20 MHz |
Duty cycle | 5%~99% |
Inductance | 100 H |
Temperature | -40℃~1000℃ -40℉~1832℉ |
Frequency response | Up to 100kHz |
Input impedance for DCV | 600mV range: around 3GΩ; all other ranges: around 10MΩ |
General Characteristics | |
Power Supply | 100 V / 120 V / 220 V / 240 V ±10%, 47 Hz~63 Hz |
Display | 6000 count EBTN LCD |
Size | 265 × 110 × 320 mm |
Weight | 4 kg |
User Manual
Download UNI-T UT8803E User Manual.
Sofware
Download UNI-T UT8803E Sofware.
Package Contents
- UNI-T UT8803E Benchtop Digital Multimeter — 1 pc.
- Test leads — 1 set
- USB interface cable — 1 pc.
- Power cord — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
