DC Power Supply SIGLENT SPD3303X
id: 862796
DC Power Supply SIGLENT SPD3303X
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 539.00
Add to cart
Overview
10 kg 110, 220 V
Availability in stock:
HK
Warranty: 36 months Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Your gift (list of the available gifts depends on the amount of your order)
Description

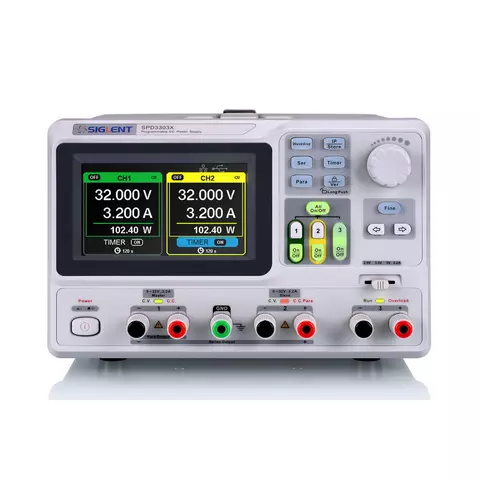

Siglent SPD3303X is a programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power.
Features
- 3 independent controlled and isolated outputs
- 32 V / 3.2 A × 2
- 2.5 V / 3.3 V / 5 V / 3.2 A × 1
- 5 digits voltage, 4 digits current display, minimum resolution: 1 mV / 1 mA
- 3 output modes: independent, series and parallel connect
- 4.3-inch TFT-LCD display with 480×272 resolution
- 100 V / 120 V / 220 V / 230 V compatible design
- Intelligent temperature-controlled fan
- Clear graphical interface, with the waveform display function
- Save/recall 5 group system specifications, supports data storage expansion
Technical Specifications
| Channels | CH1： 0 ～ 32 V， 0 ～ 3.2 A CH2： 0 ～ 32 V， 0 ～ 3.2 A CH3： 2.5/3.3/5.0 V， 3.2 A |
| Max output power | 220 W |
| Resolution | 1 mV / 1 mA |
| Voltage/Current display digits | 4.3-inch TFT-LCD 480×272 5 digits voltage and 4 digits current display |
| Ripple noise | ≤1 mVrms (5 Hz - 1 MHz) |
| Standard interfaces | LAN, USB |
| Dimensions | 225 × 143 × 278 mm |
| Weight | 8 kg |
Package Contents
- Siglent SPD3303X power supply - 1 pc.
- Test/supply leads - 1 pc.
- USB cable - 1 pc.
- Power cable - 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
