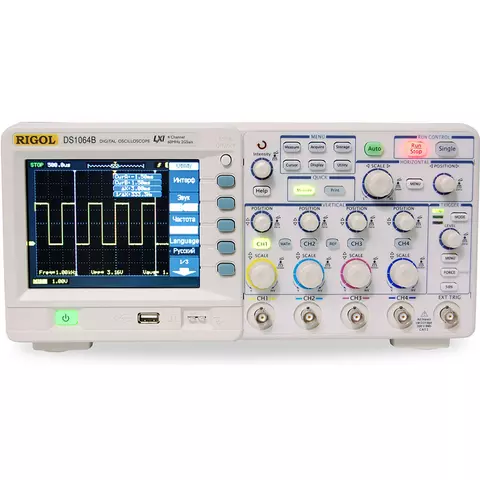

Digital 4-channel Oscilloscope Rigol DS1104B
id: 812098
7.6 kg 110, 220 V Warranty: 36 months
100 MHz bandwidth and much more to simplify your system design and test. 2 GSa/s real time sample rate. 4 analog input channels. Standard connecting interfaces: USB Device, USB Host X2 and LAN Read more
You may also like
Features
- High Performance 4-Channel Digital Oscilloscope
- 4 analog input channels,
- 2 GSa/s real time sample rate
- 100 MHz bandwidth and much more to simplify your system design and test
- The State-of-art Custom AFE Design
- Ultrascope Software
- DS1000B series offers powerful triggering; with Edge, Pulse Width, Video, Slope, Alternate, Pattern triggering, and adjustable triggering sensitivity, you will never miss a test signal in question
- LED backlight Display. 5.7” QVGA (320X240) 64 K TFT color display uses the latest LED backlight technology, which gives you the best viewing experience, yet consumes less power and lasts a longer lifespan
- Versatile Connectivity
- LXI compliance and PictBridge Supported
- Utilizing the state-of-art ASIC technology, RIGOL’s proprietary in-house design AFE replaces traditional mechanical relays to eliminate acoustical noise, achieve higher performance and reliability
- With supplied Ultrascope Software, you can set up the communication between the DS1000B series and PC’s easily. The software supports screen capture, waveforms and setups storage and remote control
- Standard connecting interfaces: USB Device, USB Host X2 and LAN
Software
Download RIGOL DS1104B Digital Oscilloscope Software
SPECIFICATIONS
Model | DS1064B |
DS1104B |
DS1204B |
Channels | 4 |
4 |
4 |
Bandwidth | 60MHz |
100MHz |
200MHz |
Real-time Sample Rate | 2 GSa/s |
||
Equivalent Sample Rate | 10 GSa/s |
25 GSa/s |
50 GSa/s |
Waveform Capture Rate | 1000 wfms/s |
||
Memory Depth | 8 k |
||
Trigger Modes | Edge, Pulse Width, Pattern/TV |
||
Display | QVGA (320 x240), 65, 000 colors, 5.7” TFT LCD |
||
Screen Display | 12 div |
||
Standard Interface | USB Device, USB Host?2, LAN |
||
Automatic Measurement | 22 (display 18 measure data) |
||
Internal Storage | 10 waveforms/10 setups |
||
USB Storage | 8 bit Bitmap, 24 bit Bitmap, PNG, CSV, Waveform, Setup |
||
Pass/Fail Detection | YES |
||
Waveform recorder/replay | YES |
||
Adjustable trigger sensitivity | YES |
