Digital Clamp Meter Accta AT-1000A
id: 891580
New
0.9 kg
Availability in stock:
HK
Warranty: 12 months Clamp meter used to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing. Jaw opening: 55 mm. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Accta AT-1000A is a digital clamp meter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing. Max. jaw opening is 55 mm. The clamp meter is equipped with a large 3999 digit LCD.
Features
- Measurement functions:
- AC/DC voltage;
- AC/DC current;
- resistance;
- capacitance;
- frequency;
- diode testing;
- continuity testing;
- duty cycle.
- Data hold function ("HOLD" button).
- Button "SELECT" intended for desired function selection.
- Relative measurements mode ("REL" button).
- Measurement modes/ranges switching ("RANGE/DUTY%" button).
- Automatic power off after 15 minutes of inactivity.
- Powered from one 9-volt battery.
- 3999 digit LCD.
- Max. jaw opening: 55 mm.
- Over limit indication ("OL").
- Low battery indication.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 400 mV / 4 V / 40 V / 400 V | ±(0,5% + 4) |
1000 V | ±(1,0% + 6) | |
AC Voltage | 400 mV | ±(1,6% + 8) |
4 V / 40 V / 400 V | ±(0,8% + 10) | |
750 V | ±(1,0% + 10) | |
Resistance | 400 Ω | ±(0,8% + 5) |
4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ | ±(0,8% + 4) | |
40 MΩ | ±(1,2% + 10) | |
DC Current | 40 A | ±(3,0% + 8) |
400 A | ±(2,5% + 8) | |
1000 A | ±(3,0% + 10) | |
AC Current | 40 A | ±(3,0% + 10) |
400 A | ±(2,5% + 8) | |
1000 A | ±(3,0% + 10) | |
Frequency | 9.999 Hz / 99.99 Hz / 999.9 Hz / 9.999 Hz / 99.99 Hz | ±(0,5% + 4) |
Capacitance | 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 100 µF | ±(5,0% + 8) |
Duty Cycle | 0,1%~99,9% | |
General Specifications | ||
Display | 3999 digit LCD | |
Jaw opening | 55 mm | |
Sampling rate | 3 times/s | |
Working temperature | 0..40°C at a humidity no more than 80% | |
Power | 9-volt battery | |
Dimensions | 255 × 90 × 46 mm | |
Weight | 388 g (with a battery) |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

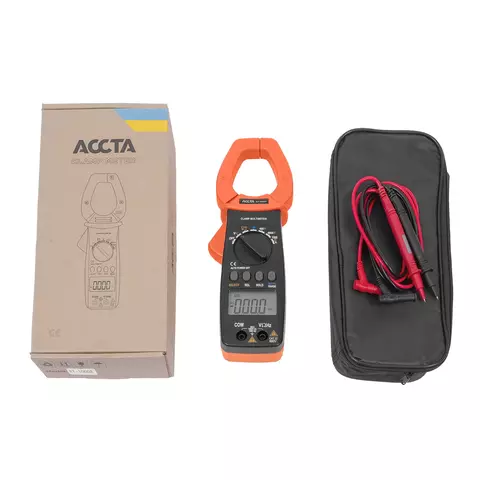

Package Contents
- Digital Clamp Meter Accta AT-1000A — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
