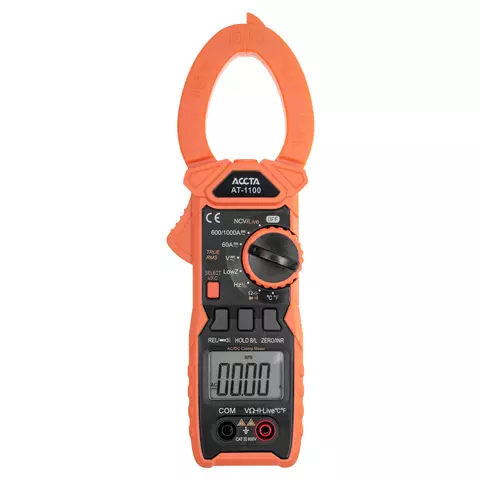

Digital Clamp Meter Accta AT-1100
id: 910801
0.4 kg Warranty: 12 months
True RMS clamp meter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, inrush current, NCV, LoZ ACV and continuity. Read more
Inform of price reduction
Accta AT-1100 is a digital clamp meter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, inrush current, LoZ ACV, temperature, continuity, and also for non-contact voltage detection and living wire detecting. Max. jaw opening is 40 mm. The clamp meter is equipped with a large, 5999 count LCD.
Additionally, Accta AT-1100 digital clamp meter measures True RMS AC voltage and current. It is equipped with many additional features to ensure safe, fast, and accurate measuring (overload protection, low battery indication, flashlight, data hold function, etc.).
Features
- True RMS AC voltage and current measurement.
- Measurement functions:
- AC/DC voltage;
- AC/DC current;
- resistance;
- capacitance;
- frequency;
- temperature;
- LoZ ACV;
- living wire detecting;
- inrush current;
- continuity buzzer;
- LIVE function;
- non-contact voltage detection (NCV).
- Data hold function ("HOLD" button).
- Low battery indication.
- Automatic power off after 15 minutes of inactivity.
- Flashlight.
- Over range indication: "OL" is shown on the LCD.
- VFC, low pass filter.
- 5999 count LCD.
- Max. jaw opening: 40 mm.
- Integrated flashlight.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 600 mV/6 V/60 V/600 V | ±(0.5%+7) |
1000 V | ±(1.0%+6) | |
AC Voltage | 6 V/60 V | ±(1.0%+10) |
600 V/750 V | ±(1.0%+12) | |
Resistance | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ | ±(1.0%+5) |
20 MΩ | ±(1.5%+15) | |
60 MΩ | ±(2.5%+20) | |
LoZ ACV | 6 V/60 V | ±(1.0%+10) |
300V | ±(1.0%+12) | |
DC Current | 60 A/600 A/1000 A | ±(4.0%+10) |
AC Current | 60 A/600 A/1000 A | ±(4.0%+10) |
Frequency | 10 Hz~10 MHz | ±(0.3%+3) |
Capacitance | 1 nF | ±(5.0%+40) |
10 nF/100 nF/1 μF /10 μF/100 μF/1 mF/10 mF | ±(5.0%+10) | |
Temperature | -20℃~1000℃ (-4-1832)℉ | ±(2.0%+5) |
General Specifications | ||
Display | LCD, 5999 count, sampling rate: 3 times/s | |
Jaw opening | 40 mm | |
Auto power off | about 15 minutes | |
Polarity indicate | cathode auto display | |
Overload indicate | OL indicating on the LCD | |
Low battery display | indicating on the LCD | |
Operation temperature | 0℃~40℃, less than 80%RH | |
Storage temperature | -10℃~50℃, less than 80%RH | |
Power | AAA battery 1.5V × 2 pcs. | |
Dimensions | 230 mm × 75 mm × 40 mm | |
Weight | about 313 g |
Package Contents
- Digital Clamp Meter Accta AT-1100 — 1 pc.
- Test Leads — 1 set
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
