Digital Micro Ohm Meter UNI-T UT620A
id: 886898
Bestseller
6 kg
Availability in stock:
HK
Warranty: 24 months Used to measure DC low resistance through 4-wire method. Unknown wire length calculation (FT/M); two-way data transmission by USB interface. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)

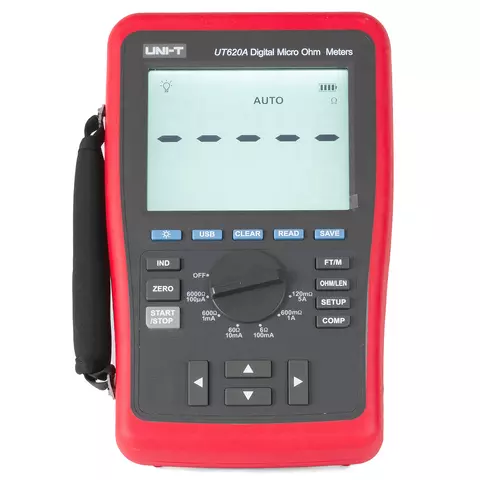

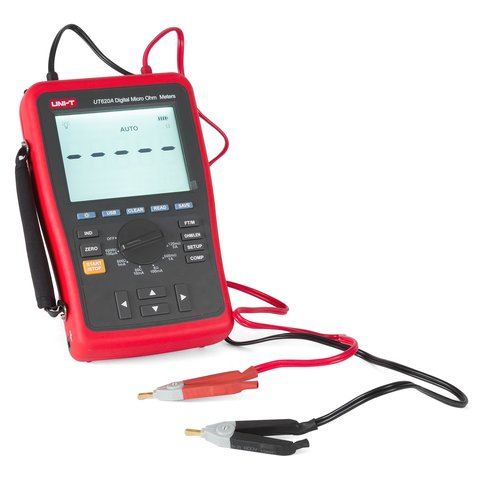

UNI-T UT620A Digital Micro Ohm Meter for testing the resistance of metal coatings, electromotors, and the winding resistance of small-sized transformers. Using this meter you may test the point of junction of earthing system; the integrity of a welding contact; breakers and switches; amphenol connectors and conductor jointing; multi-cell batteries; the generatrix of switchboards; contact resistance; conductor resistance of wires and cables.
Features
- Low resistance range: 0.5 mΩ ~ 6 kΩ.
- The minimum resolution 10 μΩ.
- Accuracy: 0.25%, four-wire testing.
- Unique function of designing wire length, you may change between meters and inches.
- Rechargeable battery included.
- The data can be stored, read, and deleted. Data storage: 1000 records.
- USB interface.
- Auto power off.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
Resistance (Ω) | 120 mΩ / 5 A | ±(0.25%+25) |
600.00 mΩ / 1 A | ±(0.25%+20) | |
6.0000 Ω / 100 mA | ±(0.25%+20) | |
60.000 Ω / 10 mA | ±(0.25%+20) | |
600.00 Ω / 1 mA | ±(0.25%+20) | |
6.0000 kΩ / 100 μA | ±(0.25%+30) | |
General Characteristics | ||
Power | Lithium Battery 7.4 V, 4000 mAh, rechargeable | |
Display | LCD, 116 mm × 87.5 mm | |
Size | 268 mm × 168 mm × 60 mm | |
Weight | 1.5 kg |
User Manual
Download UNI-T UT620A User Manual.

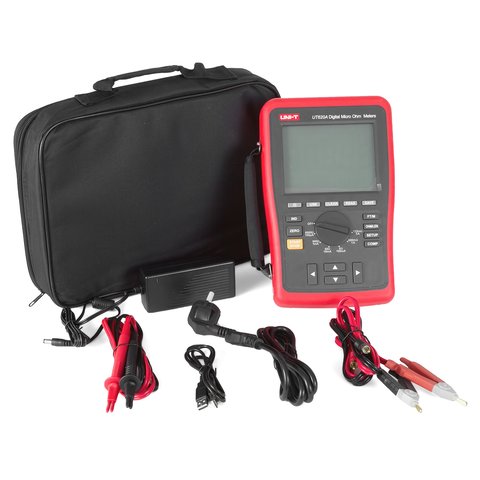

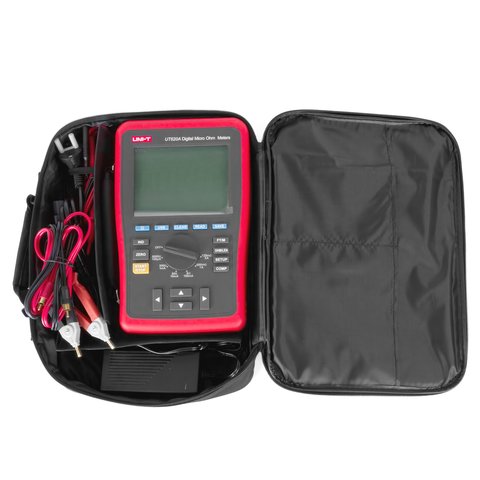

Package Contents
- UNI-T UT620A Digital Micro Ohm Meter — 1 pc.

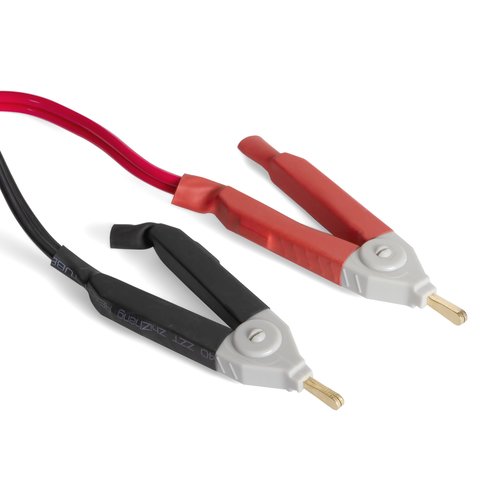

- Kelvin Clips (Red&Black) — 1 set
- Power Adaptor — 1 pc.
- USB Cable — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
