Digital Multimeter Accta AT-280
id: 891572
New
0.714 kg
Availability in stock:
HK
Warranty: 12 months True RMS multimeter that measures AC/DC current and voltage, resistance, inductance, conductance, capacitance, frequency, and temperature. May be used for diode and transistor testing. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Frequently bought together
Accta AT-280 is a digital True RMS multimeter used to measure AC/DC voltage and current, capacitance, resistance, inductance, temperature, frequency, and test diode and transistors. The device is equipped with a large LCD and is powered from a 9 V battery.
Features
- Multiple measurements:
- True RMS;
- AC/DC voltage;
- AC/DC current;
- capacitance;
- resistance;
- inductance;
- temperature;
- frequency;
- diode testing;
- transistor testing.
- LCD with backlight.
- Continuity buzzer.
- 200 mA protection.
- Auto power off.
- Manual ranging
- Low battery indication.
- Peak Hold function.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0.5%+3) |
1000 V | ±(0.8%+10) | |
AC Voltage | 200 mV | ±(0.8%+5) |
2 V / 20 V / 200 V | ±(0.8%+5) | |
750 V | ±(1.2%+10) | |
DC Current | 200 µA / 2 mA / 20 mA | ±(0.8%+10) |
200 mA | ±(0.8%+10) | |
20 A | ±(2.0%+5) | |
AC Current | 200 µA / 2 mA / 20 mA | ±(0.8%+10) |
20 mA / 200 mA | ±(0.8%+10) | |
20 A | ±(2.0%+5) | |
Resistance | 200 Ω | ±(0.8%+5) |
2 kΩ /20 kΩ / 200 kΩ / 2 MΩ | ±(0.8%+3) | |
20 MΩ | ±(1.0%+25) | |
200 MΩ | ±(5.0%+30) | |
Inductance | 2 mH / 20 mH / 200 mH / 2 H / 20 H | ±(2.5%+30) |
Capacitance | 20 nF / 200 nF /2 µF / 20 µF / 200 µF / 2000 µF | |
200 µF / 2000 µF | ±(5.0%+10) | |
20 nF / 200 nF / 2 µF / 20 µF | ±(3.5%+20) | |
Frequency | 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 20 MHz | ±(1.0%+3) |
Temperature | -20~1000 °C | ±(1.0%+5) |
-4~1832 °F | ±(0.75%+5) | |
General Specifications | ||
Power | 9 V battery (6F22) | |
Input impedance | 10 MΩ | |
Sampling rate | 3 times/s | |
AC frequency response | 40-1000 Hz | |
Display | LCD, 70 × 50 mm | |
Dimensions | 190 × 88,5 × 27,5 mm | |
Weight | 422 g |

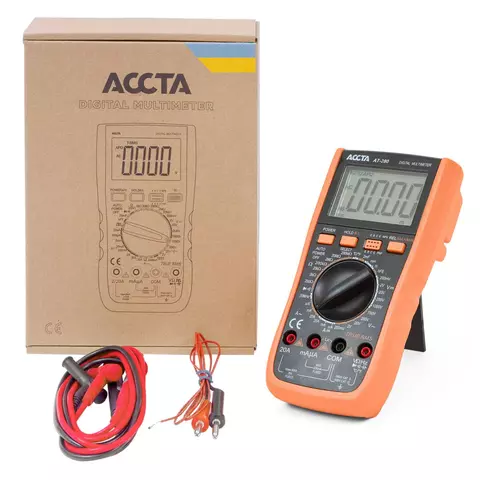

Package Content
- Digital Multimeter Accta AT-280 — 1 pc.
- Test leads — 1 set.
- Temperature probe — 1 pc.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
