Digital Multimeter UNI-T UT161B (UT61B+ analogue)
id: 905852
Digital Multimeter UNI-T UT161B (UT61B+ analogue)
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
1 kg Warranty: 24 months
A reliable digital multimeter with a variety of features that can measure up to 1000V AC/DC. Read more
Inform of price reduction
You may also like
Add to wishlist
ID: 898457
Digital Multimeter UNI-T UT61B+
USD 44.11
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity.
Availability in stock:
HK
ID: 898457 0.8 kg
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description

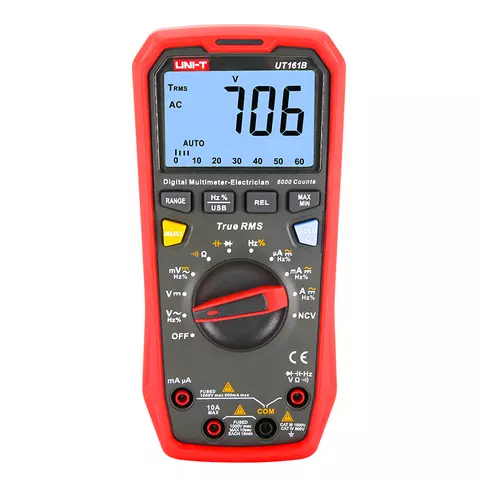

UNI-T UT161B (UT61B+ analogue) is a True RMS digital multimeter that can measure AC/DC voltage/current, resistance, capacitance, frequency, and duty ratio and test diodes, transistors, and continuity. Equipped with sonic/visual alarm to provide warning when measuring high voltage/current. A wide range of embedded features makes it a practical measuring tool for many application areas.
Features
- True RMS;
- non-contact voltage (NCV) measurement function with sonic/visual alarm;
- direct current voltage (DCV) accuracy of 0.5%;
- Max/Min/Relative mode measurements;
- internal temperature alarm;
- full scale overload protection;
- data hold and USD connectivity;
- low battery indication;
- auto power off;
- gold plated test leads;
- quality pointer display with high resolution
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC current | 10 A | ±(1.2%＋5) |
| DC current | 10 A | ±(1%＋2) |
| AC voltage | 1000 V | ±(1%＋3) |
| DC voltage | 1000 V | ±(0.5%＋3) |
| Resistance | 60 MΩ | ±(1%＋2) |
| Capacitance | 60 mF | ±(3%＋5) |
| Frequency | 10 MHz | ±(0.1%＋4) |
| Duty cycle | 0.1% ~ 99.9% | ±(2%＋5) |
| General Specifications | ||
| Display count | 6,000 | |
| Power | 1.5 V battery (R03) × 4 pcs. | |
| Dimensions | 190 mm × 90 mm × 50 mm | |
| Weight | 350 g | |
| Safety rating | CAT III 1000 V/CAT IV 600 V | |
Package Contents
- Digital multimeter UNI-T UT161B (UT61B+ analogue) – 1 pc.
- Test leads – 1 pair
- USB cable – 1 pc.
- Carrying bag – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from gsmserver.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Capacitance |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
