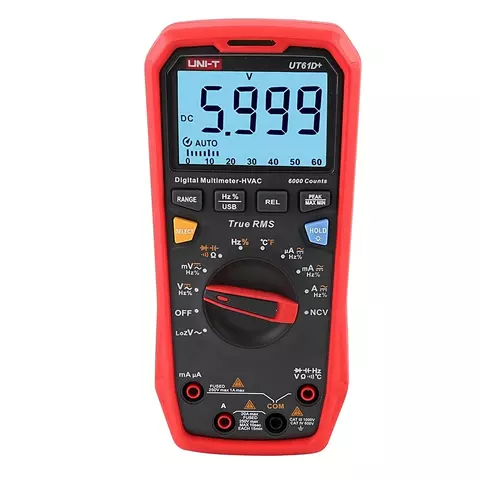

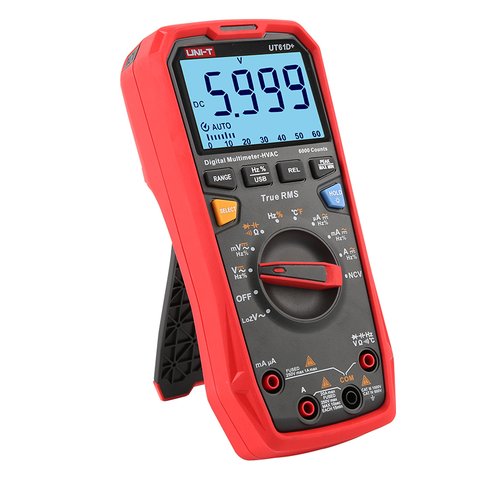

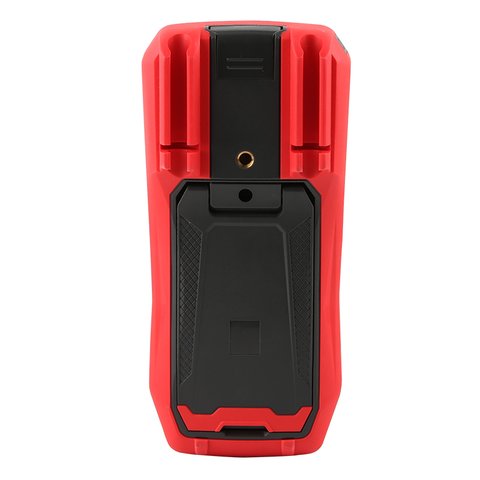

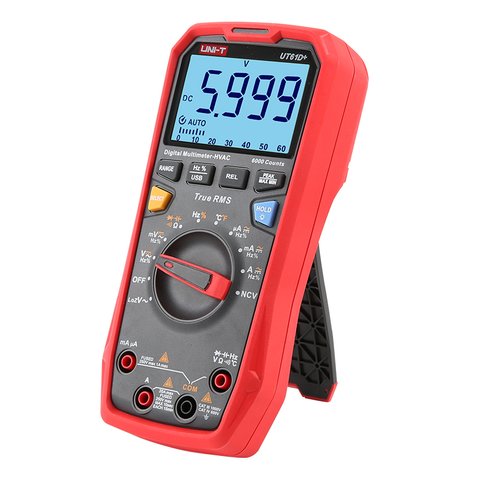

Digital Multimeter UNI-T UT61D+
id: 898460
Digital Multimeter UNI-T UT61D+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 50.29
Add to cart
Overview
0.8 kg
Availability in stock:
HK
Warranty: 24 months Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing. Read more
Buy wholesale and save
Inform of price reduction
Suggest your price
Frequently bought together
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description
UNI-T UT61D+ is a professional digital True RMS multimeter featuring high reliability and security. Equipped with a large LCD, 31 segment analog bar graph, and full scale overload protection. The multimeter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ratio, and may be used for continuity and diode testing.
Features
- Functions:
- AC/DC voltage;
- AC/DC current;
- LoZ ACV;
- resistance;
- capacitance;
- frequency;
- temperature;
- duty ratio;
- continuity;
- diode testing.
- True RMS measurement.
- Analog bar graph.
- Auto/manual ranging.
- Data hold function.
- Peak hold function.
- Large LCD with backlight.
- Max/Min/Relative mode.
- USB communication.
- Input protection.
- NCV (audible/visual alarm).
- Overload protection.
- Low battery indication.
- Auto power off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 60 mV | ± (0.8%+5) |
| 600 mV | ± (0.8%+3) | |
| 6 V / 60 V / 600 V | ± (0.5%+3) | |
| 1000 V | ± (1.0%+3) | |
| AC Voltage | 60 mV / 600 mV | ± (1.2%+5) |
| 6 V / 60 V / 600 V | ± (1.0%+3) | |
| 1000 V | ± (1.2%+5) | |
| LoZ ACV: 600 V / 1000 V | ± (2.0%+5) | |
| Resistance | 600 Ω | ± (1.2%+2) |
| 6 kΩ / 60 kΩ / 600 kΩ | ± (1.0%+2) | |
| 6 MΩ | ± (1.2%+2) | |
| 60 MΩ | ± (2.0%+5) | |
| Capacitance | 60 nF / 600 nF / 6 μF / 60 μF / 600 μF | ± (3%+5) |
| 6 mF / 60 mF | ± (10%+5) | |
| Temperature | -40℃~1000℃ | ±(1%＋3) |
| -40℉~1832℉ | ±(1%＋6) | |
| DC Current | 600 μA / 6000 μA | ± (1.0%+2) |
| 60 mA / 600 mA | ± (1.0%+3) | |
| 6 A / 20 A | ± (1.2%+5) | |
| AC Current | 600 μA / 6000 μA | ± (1.2%+5) |
| 60 mA / 600 mA | ± (1.5%+5) | |
| 6 A / 20 A | ± (2.0%+5) | |
| Frequency | 10 Hz ~ 10 MHZ | ± (0.1%+4) |
| Duty Ratio | 0.1% ~ 99.9% | ± (2.0%+5) |
| General Specifications | ||
| Power | 1.5V battery (R03) × 4 pcs. | |
| Display | LCD, 6000 count | |
| Analog Bar | 31 segments | |
| Operating Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -10°C~50°C (14°F ~122°F) | |
| Relative Humidity | ≤75% at 0˚C~30˚C; ≤50% at 30˚C~40˚C | |
| Operating Altitude | ≤2000 m | |
| Dimensions | 186 mm ×89 mm ×49 mm | |
| Weight | 400 g | |
User Manual
Download UNI-T UT61D+ user manual.
Package Contents
- Digital Multimeter UNI-T UT61D+ — 1 pc.
- Test Leads — 1 set
- K-type Temperature Probe — 1 pc.
- USB Cable — 1 pc.
- User Manual — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
