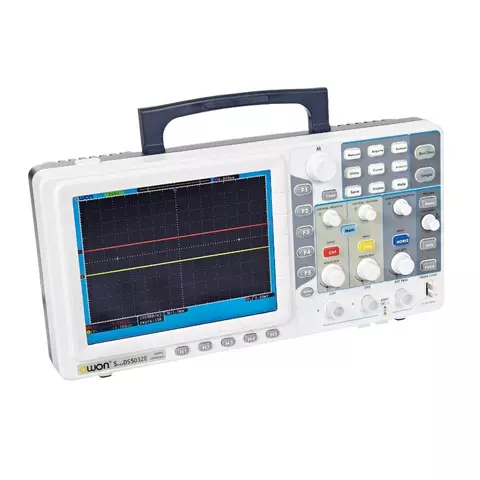

Digital Oscilloscope OWON SDS5032E-V
id: 856647
5.6 kg 110, 220 V Warranty: 12 months
Dual-channel digital oscilloscope with 30 MHz bandwidth, 250 MSa/s real-time sample rate, 8" display and 10 kB of memory depth. Read more
Buy wholesale and save
Inform of price reduction
OWON SDS5032E-V is a new low cost dual-channel oscilloscope (30 MHz) with a maximum real-time sample rate of 125 MSa/s per channel (250 MSa/s interleaved), a memory depth of 10 kB and a 8-inch color LCD.
OWON SDS5032E-V digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 30 MHz.
- 2 channels.
- Real-time sample rate: 125 MSa/s (per channel).
- Memory depth: 10 kB.
- Math functions: Add, Subtract, Multiply, Division and FFT.
- 8-inch color LCD.
- 20 automatic measurements.
- Auto-scale function.
- Pass/fail testing.
- Standard interface: USB host and device, LAN, VGA.
Technical Specifications
Bandwidth | 30 MHz |
Channels | 2 |
Real time sample rate | 125 MSa/s (single channel), 250 MSa/s (dual-channel) |
Memory depth | 10 kB |
Waveform storage | 15 waveforms |
Vertical sensitivity range | 5 mV/div ~ 10 V/div |
Vertical resolution | 8 bit |
Math | Add, Subtract, Multiply, Division, FFT |
Trigger type | Edge, Pulse, Video, Slope |
Trigger mode | Auto, Normal, Single |
General Specifications | |
---|---|
Power consumption | <18 W |
Voltage | 100 - 240 V AC, 50/60 Hz |
Standard Ports | USB host, USB device, LAN, VGA |
Display | 8-inch color LCD (800×600) |
Weight | 1.5 kg |
Dimensions (W×H×D) | 348 × 170 × 78 mm |
Video
Package Contents
- OWON SDS5032E-V digital oscilloscope (1 pc.)
- Probes (2 pcs.)
- Power cable (1 pc.)
- USB data cable (1 pc.)
- User manual (1 pc.)
- CD (1 pc.)
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
