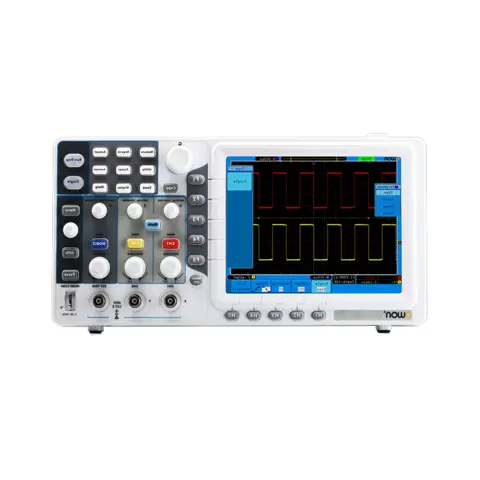

Digital Oscilloscope OWON SDS5032E
id: 875038
5.6 kg Warranty: 12 months
2-channel desktop digital oscilloscope with 30 MHz bandwidth, 250 MSa/s sample rate, 10K pts wavelength, 8 bits vertical resolution. Read more
Buy wholesale and save
Inform of price reduction
OWON SDS5032E is a desktop digital oscilloscope. The 2-channel device at an affordable price with 30 MHz bandwidth, 250 MSa/s sample rate and 10K pts wavelength. The main advantage of the device is its compact size and a large display, which ensures the comfort of use.
Features
- 30 MHz bandwidth.
- 2-Channel.
- Sample rate: 250 MS/s (Real time).
- 10K pts wavelength.
- Display: 8" color LCD, 800 × 600 pixels.
- SCPI supported.
- Communication Interface: USB, LAN.
- Recording and reproducing waveforms function.
- Pass/Fail function.
Technical Specifications
Bandwidth | 30 MHz |
Horizontal Scale (s/div) | 4 ns/div - 1000 s/div | Rise Time | ≤11ns |
Channel | 2 |
Vertical Sensitivity | 5 mV/div - 10 V/div |
DC Gain Accuracy | 3% |
Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
Input | |
Input Impedance | 1 MΩ, 10 pF |
Input Coupling | AC, DC, GND |
Max Input Voltage | ± 400 V, CATI, CATII |
Passive Probes | х1; х10 |
Probe Attenuation Factor | х1; х10; х100; х1000 |
Trigger System | |
Trigger Mode | Auto, Normal, Single |
Trigger Type | Edge, Pulse, Video, Slope, Alternate |
Edge Trigger Source | CH1, CH2, External, External / 5, AC Power Line |
Video Trigger | |
Sampling Type | real-time |
Sample Rate | 250 MSa/s |
Equivalent Sample Rate | no |
Wavelength | 10K pts |
Sample Mode | Direct Sampling, Peak Recording, Averaging |
Averaging | 4, 16, 32, 64, 128, 256 |
Form Formation Mode | Vector, Point |
Afterglow Function | no, 1 s, 2 s, 5 s, constantly |
Interpolation | sin(x)/x |
Measurement and Mathematical Treatment System | |
Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,<br> Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
Cursor Measurements | Manual Mode, Tracking Mode (Auto Installation), Delta-Measurement |
General Characteristics | |
Display type | 8" color LCD |
Display resolution | 800 × 600 |
Power | 100-240 V, 45-440 Hz, <18 W |
Dimensions | 348 × 78 × 170 mm |
Weight | 1,5 kg |
User Manual
Download OWON SDS5032E User Manual.
Video
Package Contents
- Digital Oscilloscope OWON SDS5032E — 1 pc.
- Probes — 2 pcs.
- Power cord — 1 pc.
- USB cable — 1 pc.
- Software, CD-ROM — 1 pc.
- User Manual — 1 pc.
- Guarantee card — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
