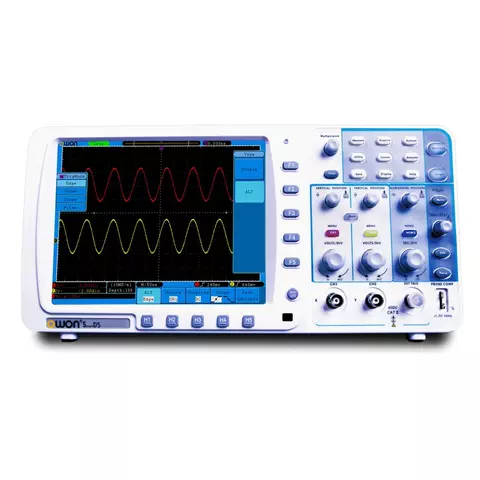

Digital Oscilloscope OWON SDS7072-V
id: 856862
5.6 kg 110, 220 V Warranty: 12 months
Dual-channel digital oscilloscope with 70 MHz bandwidth, up to 1 GS/s real-time sample rate, 10 M memory and 8" display. Read more
Buy wholesale and save
Inform of price reduction
You may also like
OWON SDS7072-V is a dual-channel digital oscilloscope with 70 MHz bandwidth, up to 1 GS/s real-time sample rate, 10 M memory and 8" display.
Features
- Pass/Fail function
- Autoscale function
- 8 inch LCD color display
- Interfaces: USB2.0, USB flash drive, LAN, VGA
Technical Specifications
Bandwidth | 70 MHz |
Real time sample rate | 1 GS/s |
Channels | Dual channels + external trigger |
Display | 8.0" color LCD, TFT screen, 640×480 pixels, 65535 colors |
Input impedance | 1 MΩ ±2%, in parallel with 10 pF ±5 pF |
Record length | 10M |
Max. input voltage | 400 V (PK-PK) (DC + AC PK-PK) |
Probe attenuation factor | 1X, 10X, 100X, 1000X |
Vertical resolution (A/D) | 8 bit (2 channels simultaneously) |
Vertical sensitivity | 2 mV/div ~ 10 V/div |
Waveform Math | +, -, ×, ÷, FFT |
Waveform storage | 15 waveforms |
Communication interface | USB2.0, USB flash drive, LAN, VGA |
Mains Voltage | 100 - 240 VAC RMS, 50/60 Hz, CAT II |
Power Consumption | < 18 W |
Fuse | 2 A, T grade, 250 V |
Dimensions | 340 × 155 × 70 mm |
Weight | ~ 1.82 kg |
Video
Package Contents
- Owon SDS7072-V Digital Oscilloscope – 1 pc.
- Measuring probes – 1 pair
- Power cord – 1 pc.
- USB data cable – 1 pc.
- CD – 1 pc.
- User's Manual – 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
