Digital Oscilloscope OWON XDS2102A
id: 887988
3 kg Warranty: 12 months
2-channel desktop digital oscilloscope with 100 MHz bandwidth, 1 GS/s sample rate, 20 Mpts wavelength, 12 bits vertical resolution. Read more
Inform of price reduction
You may also like

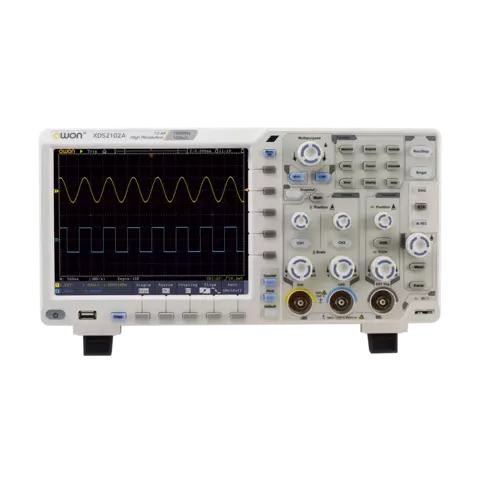

OWON XDS2102A is a desktop digital oscilloscope. The 2-channel device at an affordable price with 100 MHz bandwidth and 1 GSa/s sample rate. The main advantages of the device are its compact size, 12 bits of vertical resolution and 20 Mpts wavelength. It has the large display, that ensures the comfort of use.
Features
- 100 MHz bandwidth
- 2-Channel
- Sample rate: 1 GSa/s (Real time)
- 20 Mpts wavelength
- Display: 8" color LCD, 800 × 600 pixels
- SCPI and LabVIEW supported
- 55,000 wfms/s waveform refresh rate
- Low background noise
- Multi-interface integration: USB host, USB device, USB port for PictBridge, LAN, AUX, and more+ VGA port
- RS232, SPI, I2C, CAN decoding
Technical Specifications
Bandwidth | 100 MHz |
Horizontal Scale | 2ns/div - 1000s/div |
Channel | 2 + 1 (external) |
Vertical Sensitivity | 1 mV/div - 10 V/div |
Rise Time | ≤3.5ns |
DC Gain Accuracy | ±1.5% |
Vertical Resolution | 12 bits |
Sweep Speed | 2 ns - 1000 s |
Input | |
Input Impedance | 1MΩ ± 2%, in parallel with 15pF ± 5pF |
Input Coupling | AC, DC, GND |
Max Input Voltage | 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms |
Passive Probes | x1; x10 |
Probe Attenuation Factor | 0.001X - 1000X |
Trigger System | |
Trigger Mode | Auto, Normal, Single |
Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, option: I2C, SPI, RS232, CAN + decoding I2C, SPI, RS232 and CAN |
Edge Trigger Source | CH1, CH2, External, External / 5, AC Power Line |
Video Trigger | |
Sampling Type | real-time |
Sample Rate | 1 GSa/s - 8 bits, 500 MSa/s - 12 bits |
Waveforms Storage | 100 (internal memory) |
Wavelength | 20 Mpts |
Sample Mode | Direct Sampling, Peak Recording, Averaging |
Form Formation Mode | Vector, Point |
Interpolation | sin(x)/x |
Measurement and Mathematical Treatment System | |
Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count |
Cursor Measurements | △V, and △T between cursors, △V and △T between cursors, and auto- cursors |
Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
General Specifications | |
Display type | 8" color LCD |
Display resolution | 800 × 600 |
Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) |
Power | 100-240 V, 45-440 Hz, <15 W |
Dimensions | 340 × 177 × 90 mm |
Weight | 2.6 kg |
Package Contents
- Digital Oscilloscope OWON XDS2102A — 1 pc.
- Probes — 2 pcs.
- Power cord — 1 pc.
- USB cable — 1 pc.
- Probe adjust — 1 pc.
- Software, CD-ROM — 1 pc.
- User Manual — 1 pc.
