Digital Vibration Tester UNI-T UT312A
id: 913857
1 kg Warranty: 24 months
The tool is designed to measure the vibration acceleration, velocity, and displacement of mechanical equipment. Read more
Inform of price reduction

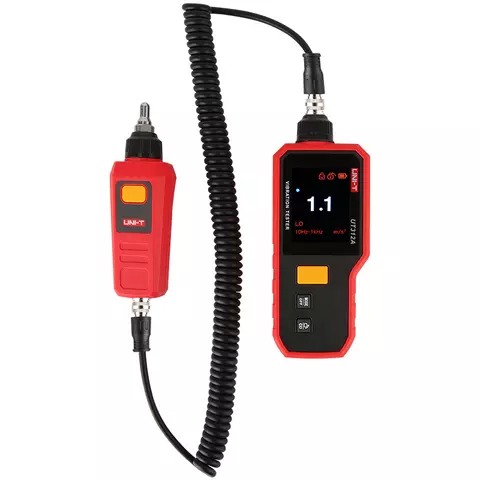

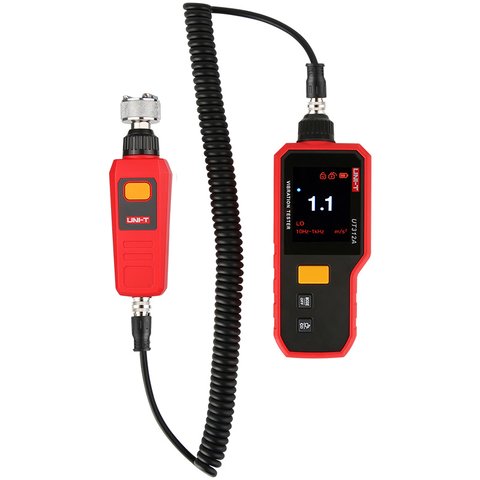

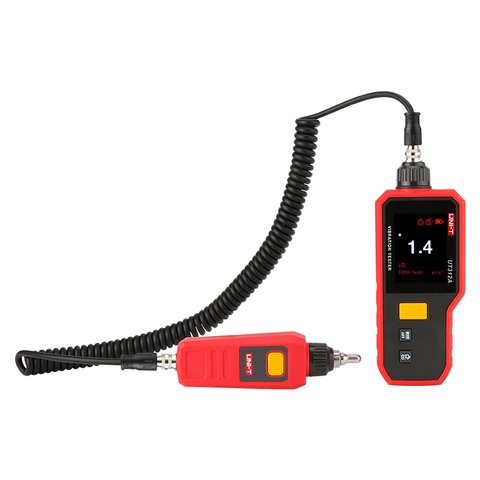

UNI-T UT312A is a handheld digital vibration tester primarily utilized for measuring vibration acceleration, velocity, and displacement in mechanical equipment. It boasts a wide measurement range, user-friendly operation, and convenient portability. This device serves as an ideal inspection tool for conducting equipment vibration patrols in the power, metallurgical, and petrochemical industries.
Features
- Automatically rotatable 2.4" color TFT LCD for easy viewing and operation
- Built-in flashlight for measurements in low-light or nighttime conditions
- Capable of measuring acceleration, velocity, and displacement
- Switchable between high and low vibration frequencies
- Powered by a rechargeable lithium battery
- High-sensitivity sensor for precise measurements
- Comes with both long and short probes, suitable for measurements in various locations
- Simple design, compact structure, making it easy to carry and use
Technical Specifications
Model | UT311A | UT312A | ||
---|---|---|---|---|
Parameter | Range | Frequency | Resolution | Accuracy |
Acceleration (PEAK) | 0.1-199.9 m/s² | LO: 10 Hz-1 kHz | 0.1 m/s² | ±(5%+2dgts) |
HI: 1 kHz-15 kHz | ||||
Velocity (RMS) | 0.1-199.9 mm/s | 10 Hz-1.5 kHz | 0.1 mm/s | |
Displacement (P-P) | 0.001-1.999 mm | 10 Hz-1 kHz | 0.001 mm | ±(10%+2dgts) |
Automatically rotatable screen | ✓ | |||
High/Low frequency acceleration | ✓ | |||
Datahold | ✓ | |||
Flashlight | ✓ | |||
Display | 2.4" TFT LCD color screen, full view | |||
LCD backlight | ✓ | |||
Auto power off | 5 minutes without operation | |||
Probes | long and short probes, magnetic sucker (UT312A only) | |||
Battery indication | ✓ | |||
Battery type | 1350 mAh/3.7 V lithium battery | |||
Charging interface | Type-C | |||
Charging voltage | DC 5 V | |||
Charging time | about 3 h | |||
Battery duration | about 12 h | |||
Operating temperature and humidity | 0℃~40℃; ≤80%RH, non-condensing | |||
Storage temperature | -20℃~60℃ | |||
Dimensions | 180 mm × 28 mm × 64 mm (including the short probe) | 168 mm × 28 mm × 64 mm | ||
Weight | about 191 g (including the short probe) | about 364 g (including the short probe) |
Video
User Manual
Download UNI-T UT312A user manual.
Package Contents
- Digital Vibration Tester UNI-T UT312A — 1 pc.
- Probes (long and short) — 1 set
- U-type Magnetic Sucker — 1 pc.
- USB-C Charging Cable — 1 pc.
- User Manual — 1 pc.
- Safety Instructions — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
