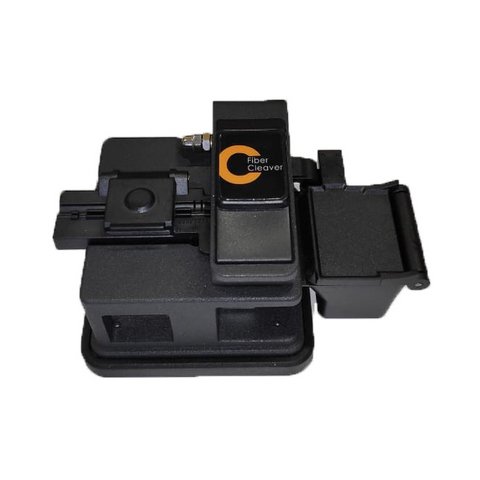

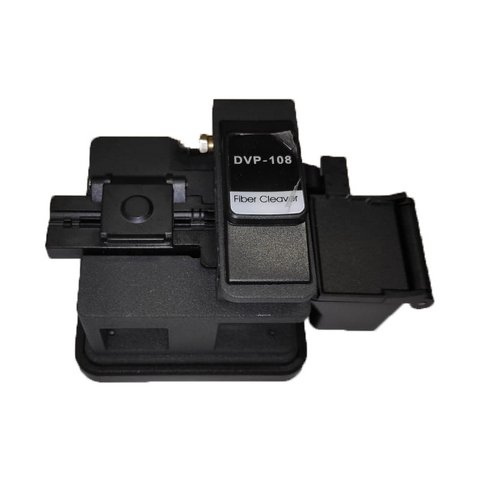

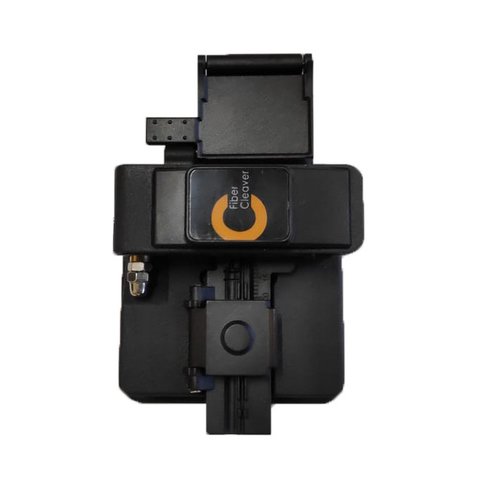

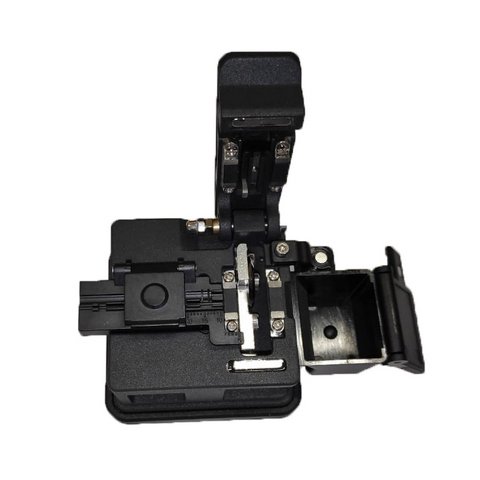

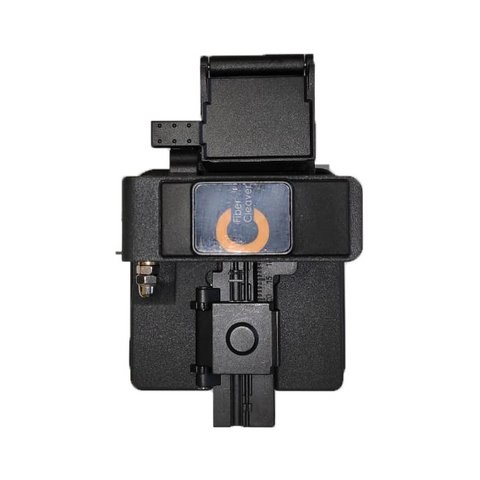

Fiber Optic Cleaver DVP-108
id: 895451
High-precision, lightweight, and compact cleaver with a high-strength steel blade which can be fixed in 16 different positions. Blade's lifetime is up to 48,000 operations. Read more
Buy wholesale and save
Inform of price reduction
DVP-108 is a precision, compact and easy-to-use cleaver used to prepare optical fibers for splicing.
The device cleaves the fiber with a high-strength steel blade, which is also rotatable and can be fixed in 16 different positions. Blade's lifetime is up to 48 000 operations. You can replace the blade with a new one after its lifetime end.
Features
- Applicable for cleavering single, flat or round fibers.
- Optical fiber fixture for optical fiber, optimized for standard, flat and round fibers, applied for FTTH and PON, G.657 standard.
- Embedded ruler to control the cleavered fiber length, 5 - 20 mm.
- High quality cleavering by means of a special blade made of durable steel.
- 16 different blade positions with its lifetime of 48 000 operations.
- Possibility to replace blade with a new one after its lifetime end.
- Scrap collector.
- Durable and usable carrying and storage case.
Technical Specifications
Applicable fibers | Single Flat Round (for FTTH and PON, G.657 standard) |
Fiber diameter | 125 μm |
Fiber diameter with coating | 250 μm 900 μm |
Fiber cleaving length | 5 ~ 20 mm |
Cleaving angle | 90 ± 0,8° |
Blade | changeable 16 positions height adjustment lifetime 48000 operations (1000*16*3=48000) |
Dimensions | 60 × 800 × 630 mm |
Weight | 275 g |
Package Contents
- Fiber Optic Cleaver DVP-108 — 1 pc.
- Scrap collector — 1 pc.
- Carrying and storage case — 1 pc.
- Wrench for turning or replacement blade — 2 pcs.
- Manual — 1 pc.
