Fusion Splicer Sumitomo Type-82C+
id: 847867
Made in Japan
12 kg 110, 220 V
Availability in stock:
HK
Warranty: 12 months Direct core monitoring fusion splicer for ultra fast splicing in every environment. Splicing time: 5 s, heating time: 9 s. Read more
Inform of price reduction
Suggest your price
Note! This item is shipped within 10 working days.
Your gift (list of the available gifts depends on the amount of your order)

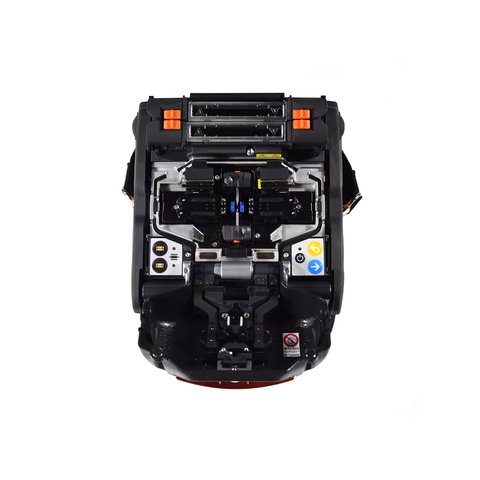

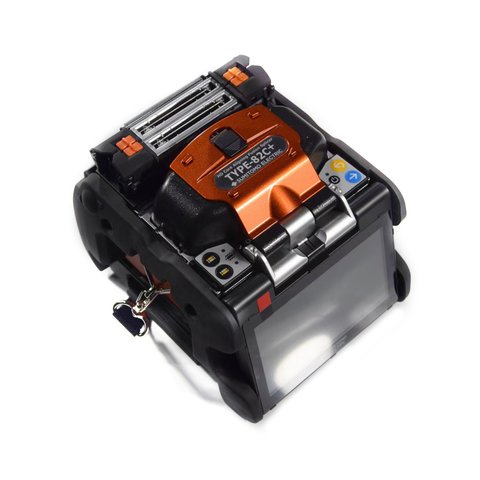

Sumitomo Type-82C+ is a direct core monitoring fusion splicer for ultra fast splicing in every environment.
Features
- Ultra fast splicing: 5 sec.
- Ultra fast heating: 8 sec.
- Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
- Automatic arc calibration.
- G.657 fiber auto-splice function.
- Supports bi-directional splicing operation.
- Dust-resistant, water-resistant and shock-proof.
- Compact & lightweight (only 1.9 kg).
- Touch-screen operation.
- Upgrades software via internet.
- Remote interactive maintenance via internet.
- Equipped with onboard user training video.
Technical Specifications
Optical fiber requirements | ||
---|---|---|
Material |
Silica glass | |
Profile types | SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF | |
Fiber diameter | Cladding diameter: 80 µm ~ 150 µm, Coating diameter: 100 µm ~ 1,000 µm | |
Cleave length | 5 ~ 16 mm with coating clamp | |
Standard performance | ||
Splice loss (typical) | SMF: 0.01 dB, MMF: 0.01 dB, DSF: 0.034 dB, NZDSF: 0.03 dB | |
Return loss (typical) | 60 dB or greater | |
Splice time (typical) | 5 sec (SM G652 Quick Mode), 7 sec (SM G652 Std. Mode), 7 sec (Auto Mode) | |
Heating time (typical) | 8 sec (FPS-61-2.6 sleeve, S60 mm 0.25 Quick Mode) | |
Splice & Heat cycles per battery full charge | Approx. 320 (BU-16) | |
Fiber view & magnification | Two CMOS cameras observation, 380X (zoom: 760X) for X or Y single axis view, 270X for both X & Y dual axis view | |
Proof test | 1.96 ~ 2.09N | |
Applicable protection sleeve | 60 mm, 40 mm & Sumitomo Nano sleeves | |
Programs | ||
Splicing programs | Max. 300, 74 are pre-optimsed, 226 editable by user | |
Heating programs | Max. 100, 27 are pre-optimsed, 73 editable by user | |
Functions | ||
Splice image capture / Splice data storage | 200 images / 10,000 splice data (internal memory only) 50,200/20,000 (with 8GB SD card) |
|
Attenuation splicing | 0.1 dB to 15 dB in 0.1 dB increments | |
Universal clamps | Provided, 200 μm, 900 μm tight & loose buer fiber | |
Reversible coating clamps | Provided | |
Dual automatic independent ovens | Provided | |
User-selectable oven clamp operation | Provided | |
Onboard user training video | Provided | |
Automatic fiber identification | SMF / MMF / DSF / NZDSF / BIF / Other | |
Automatic arc calibration | Automatically compensates for environmental condition changes | |
Display of remaining Splice & Heat cycles | Provided (Battery mode) | |
Wireless LAN connectivity (Option) | Provided | |
Terminals | ||
DC output | DC12 V (for JR-6) | |
USB port | USB 2.0 (mini-B type) | |
Storage media | SD / SDHC memory card MAX32GB | |
Power supply | ||
AC input | AC 100 ~ 240 V, 50/60 Hz (ADC-16) | |
DC input | DC 10 ~ 15 V | |
Battery pack | Li-ion 10.8 V, 6,400 mAh (BU-16) | |
General Specifications | ||
Display |
5.0" touch screen color LCD | |
Dimensions (W × D × H) | 128 mm × 154 mm ×x 130 mm (without anti-shock rubber) | |
Weight |
1.9 kg (without battery), 2.2 kg (with battery) | |
Electrode life | 6,000 arc discharges | |
Software updates | Internet | |
Data management | Can be stored, edited and analyzed by dedicated PC software | |
Environment | ||
Operating conditions | Altitude 0~6,000 m Temperature -10~+50°C Humidity 0~95% (non-condensing) Wind velocity up to 15 m/s |
|
Storage conditions | Temperature -40~+80°C Humidity 0~95% (non-condensing) Battery -20~+30°C (long term) |
|
Dust resistance | Equivalent to IP5x (Operates normally after 8 hours in a test chamber with circulating dust particles smaller than 75 μm) | |
Water resistance | Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5 min on each of 4 surfaces tilted at 15°) | |
Shock resistance | Drop from 76 cm on 5 faces (excluding top face) | |
Impact resistance | Equivalent to IK07 on LCD monitor (Protected against 2J impact, it is equivalent to a 500g force from 40cm) |

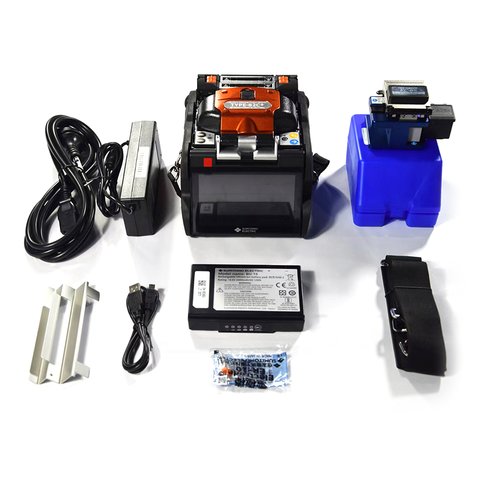

Package Contents
- Fusion splicer main unit Sumitomo Type-82C+ — 1 pc.
- Battery pack — 1 pc.
- AC adapter ADC-16 — 1 pc.
- Power cord — 1 pc.
- USB cable — 1 pc.
- Cooling tray — 1 pc.
- Spare electrodes ER-10 — 1 pair
- Quick reference guide — 1 pc.

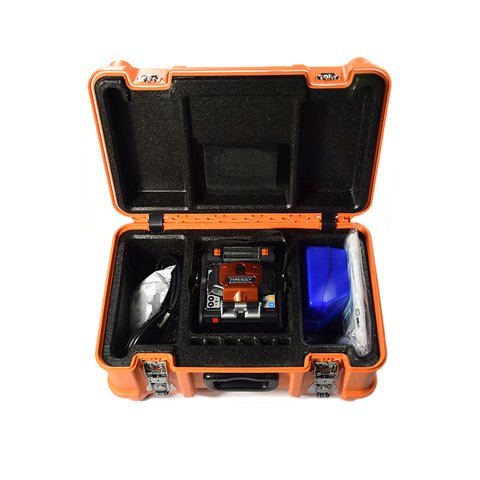

- Carrying case with worktable CC-82 — 1 pc.
- Hand strap — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
