Handheld Digital Oscilloscope OWON HDS1021M-N
id: 875040
0.65 kg Warranty: 12 months
Single channel portable digital oscilloscope with 20 MHz bandwidth, 500 MSa/s sample rate, and a set of multimeter measurement functions. Read more
Buy wholesale and save
Inform of price reduction

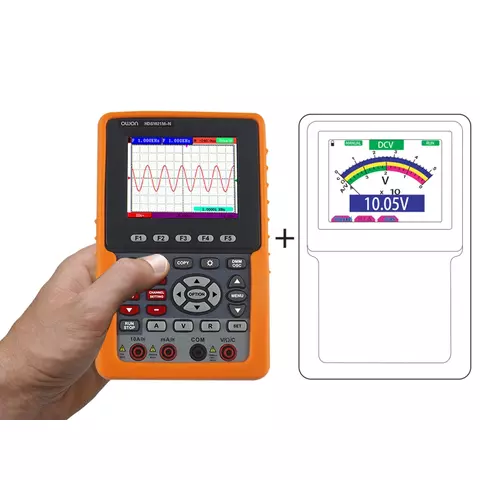

OWON HDS1021M-N is a single channel portable oscilloscope with 20 MHz bandwidth, 500 MS/s real-time sample rate, and 6K pts wavelength. In addition to the basic oscilloscope functions, the device performs the multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check. There is USB host for external device connection.
Features
- 20 MHz bandwidth.
- Channel: 2 in 1 (DSO + Multimeter).
- Sample rate: 500 MS/s (Real time).
- 6K pts wavelength.
- 3.7” color TFT display (640 × 480 pixels).
- SCPI supported.
- Interface: USB.
- Built-in multimeter.
Technical Specifications
Bandwidth | 20 MHz |
Rise Time | ≤ 11 ns |
Channel | 2 in 1 (DSO + Multimeter) |
Vertical Sensitivity | 5 mV/div - 5 V/div |
DC Gain Accuracy | 3% |
Vertical Resolution (A/D) | 8 bits |
Horizontal Scale (s/div) | 5 ns/div - 100 s/div |
Input | |
Input Impedance | 1 MΩ, 10 pF |
Input Coupling | AC, DC, GND |
Max Input Voltage | ± 400 V, CATI, CATII |
Passive Probes | х1; х10 |
Probe Attenuation Factor | х1; х10; х100; х1000 |
Trigger System | |
Trigger Mode | Auto, Normal, Single |
Trigger Type | Edge, Video, Alternate |
Video Trigger | |
Sampling Type | real-time |
Sample Rate | 500 MSa/s |
Wavelength | 6K pts |
Sampling Mode | Direct Sampling, Peak Recording, Averaging |
Interpolation | sin(x)/x |
Measurement and Mathematical Treatment System | |
Automatic Measurement | Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
Math Functions | Addition, Subtraction, Multiplication, Division, FFT |
General Characteristics | |
Display type | 3,5" color LCD |
Display resolution | 320 × 240 |
Power | 100-240 V / Li-ion 7.4 V (6 hours’ operation) |
Dimensions | 115 × 40 × 180 mm |
Weight | 0,65 kg |
User Manual
Download OWON HDS1021M-N user manual.
Software
Download OWON HDS1021M-N Software.
Package Contents
- Digital Oscilloscope OWON HDS1021M-N — 1 pc.
- Probe — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Multimeter Probes — 2 pcs.
- USB Testing Adapter — 1 pc.
- Capacity Measurement Module — 1 pc.
- User Manual — 1 pc.
- Guarantee Card — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
