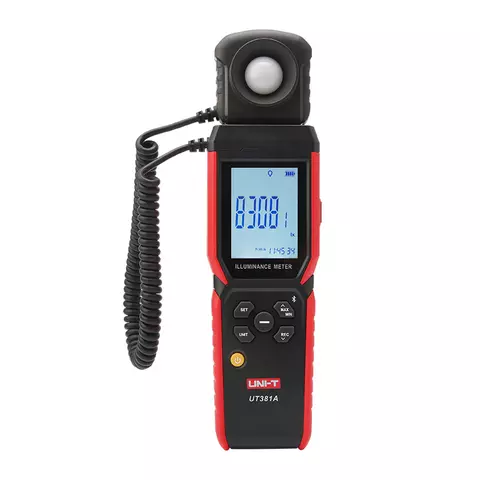

Illuminance Meter UNI-T UT381A
id: 914126
1 kg Warranty: 24 months
Safe digital light meter with a wide range of measurements, widely used in lighting applications, laboratories, offices, streetlight construction, commercial venues, etc. Read more
Inform of price reduction
UNI-T UT381A is a dependable and secure digital light meter boasting a wide measuring range of up to 400,000 lux. It finds extensive utility across various fields including lighting applications, laboratories, offices, streetlight construction, commercial venues, and more.
Features
- Wide measurement range: 0~400,000 lx

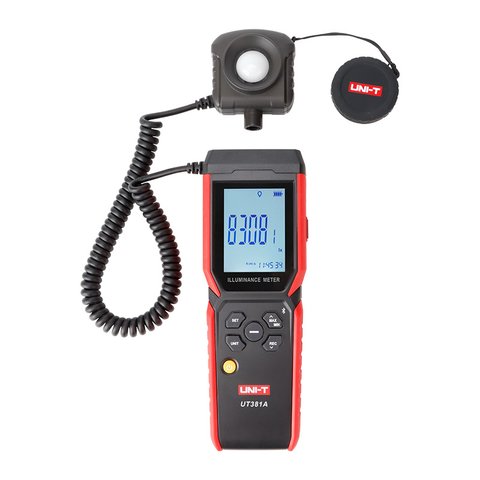

- Probe of integrated, split and rotatable design
- LCD with backlight
- Data storage capability
- Bluetooth connectivity with supported app
- Color Correction Factor (CCF) for accurate LED measurements across different light color options
- Real-time display functionality
- Durable protective cap for enhanced longevity
Technical Specifications
Certificates | CE, UKCA, RoHS | |
Resolution | 0~99.99 lx (99,99 fc) | 0.01 lx (0.01 fc) |
100~999.9 lx (999,9 fc) | 0.1 lx (0.1 fc) | |
1000~400000 lx (37160 fc) | 1 lx (1 fc) | |
Accuracy | ±3% calibration as per standard light source when in 2856K | |
±6% calibration as per other visual light source | ||
Unit Switch | lx, fc, 1 fc=10.764 lx | |
Auto Range Switch | ✓ | |
MAX/MIN/AVG | ✓ | |
Data Hold | ✓ | |
Color Correction Coefficient (CCF | ✓ | |
Backlight | ✓ | |
Bluetooth APP | ✓ | |
Data Record | 99 sets | |
Record Interval | 1~59 seconds | |
Measuring Methods of Probe | integrated (rotatable), split design | |
Real Time | time is automatically updated with manual setting or phone APP connection | |
Overrange Indication | OL display | |
Low Battery Indication | auto power off when low battery icon flashes for 10 seconds | |
Auto Power Off | auto power off if no operation in 10 seconds (cancelable) | |
Power | 1.5 V AAA battery × 3 pcs. | |
Battery Life | over 100 hours (alkaline batteries,Bluetooth and backlight is off) | |
Working Temperature and Humidity | -10°C~50°C, <90% RH (non-condensing) | |
Storage Temperature and Humidity | -20°C~70°C, <80% RH (non-condensing) | |
Dimensions | 235 mm × 64.5 mm × 39.8 mm | |
Weight | about 257 g, without batteries |
Video
User Manual
Download UNI-T UT381A user manual.
Package Contents
- Illuminance Meter UNI-T UT381A — 1 pc.
- 1.5V AAA Battery — 3 pcs.
- Strap — 1 pc.
- Quick Start Guide — 1 pc.
- Safety Instructions — 1 pc.
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
