Overview
11 kg Warranty: 24 months
Three-channel output and overvoltage/current/temperature protection. Output voltage: 0~30V. Output current: 0~3A. Read more
Buy wholesale and save
Inform of price reduction
Description

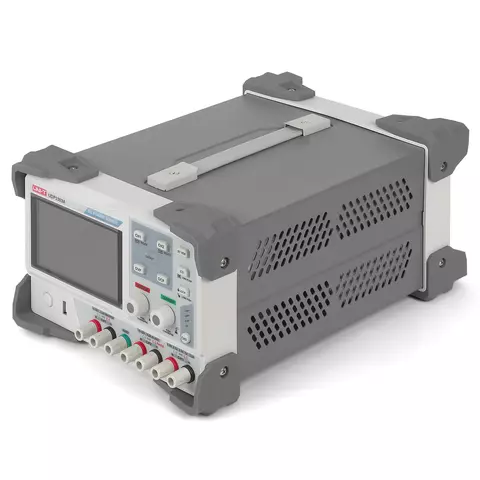

UNI-T UDP3303A is an industrial linear DC power supply with three-channel output and overvoltage/current/temperature protection.
Applications
- Product development and debugging.
- Quality control and inspection.
- Production automation test.
- Electronics design.
- Battery charging.
- Electrical vehicle maintenance.
- Research and education.
Technical Specifications
| Output voltage (CH1/CH2) | 0~30 V |
| Output current (CH1/CH2) | 0~3 A |
| Output power | 195 W |
| Load regulation | Voltage: <0.01%+3mV; Current: <0.1%+5mA |
| Line regulation | Voltage: <0.01%+3mV; Current: <0.1%+3mA |
| Programming resolution | Voltage: 10mV; Current: 1mA |
| Recall resolution | Voltage: 10mV; Current: 1mA |
| Accuracy (25℃±5℃) | Voltage: ±(0.1% of reading+30mV) |
| Current: ±(0.3% of reading+5mA) | |
| Ripple and noise (20Hz~20MHz) | Voltage: ≤1mVrms; Current: ≤3mArms |
| Temperature coefficient | Voltage: ≤150ppm/℃; Current: ≤150ppm/℃ |
| Voltage rise/fall delay | ≤100ms (10% rated load) |
| Parallel load regulation | Voltage: ≤0.01%+3mV |
| Series load regulation | Voltage: <100mV |
| CH3 Output Features | Voltage: 1.8V/2.5V/3.3V/5.0V Current: 3A Voltage accuracy: ±50mV Load regulation: ±50mV |
| Interfaces | USB Host (5V/2A, charging port only), digital interface |
| Power Supply | AC 100V/120V/220V/230V±10%, 50Hz/60Hz |
| Display | EBTN LCD |
| Size | 143 x 190 x 327 mm |
| Weight | 8.5 kg |
Package Contents
- UNI-T UDP3303A Linear DC Power Supply — 1 pc.
- Power cord — 1 pc.
- Output cables — 1 set
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
